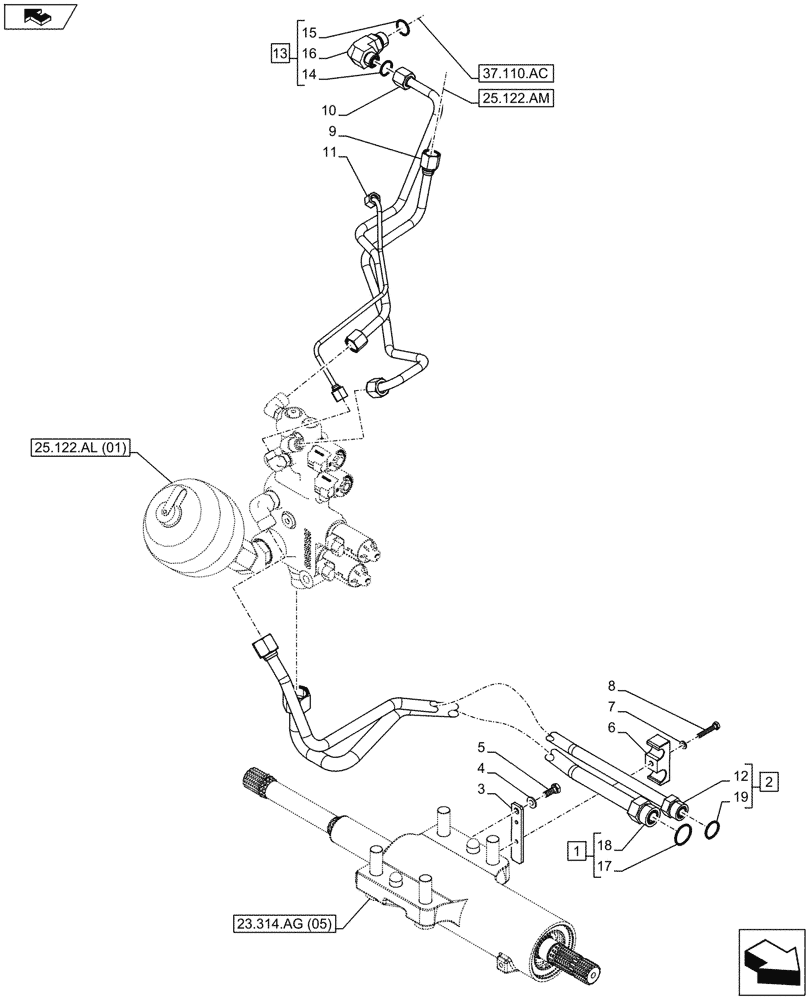

Запчасти Case IH MAXXUM 110 (25.122.AL[02]) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE, PIPE (25) - FRONT AXLE SYSTEM

1

47371480

HYD TUBE

ASSY, Axle Suspension Return, Incl 17, 18

1шт.

2

47371482

HYD TUBE

ASSY, Supply Axle Suspension Return, Incl 12, 19

1шт.

3

87636988

BRACKET

1шт.

4

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

87636992

CLAMP BRACKET

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

9

47371475

HYD TUBE

Supply Valve

1шт.

10

47521914

HYD TUBE

Return from Suspension Valve

1шт.

11

47548679

HYD TUBE

1шт.

12

NSS

NOT SOLD SEPARAT

Tube, Incl in 2

1шт.

13

87670188

HYD CONNECTOR

ASSY, Incl 14 - 16

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

15

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 13

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
