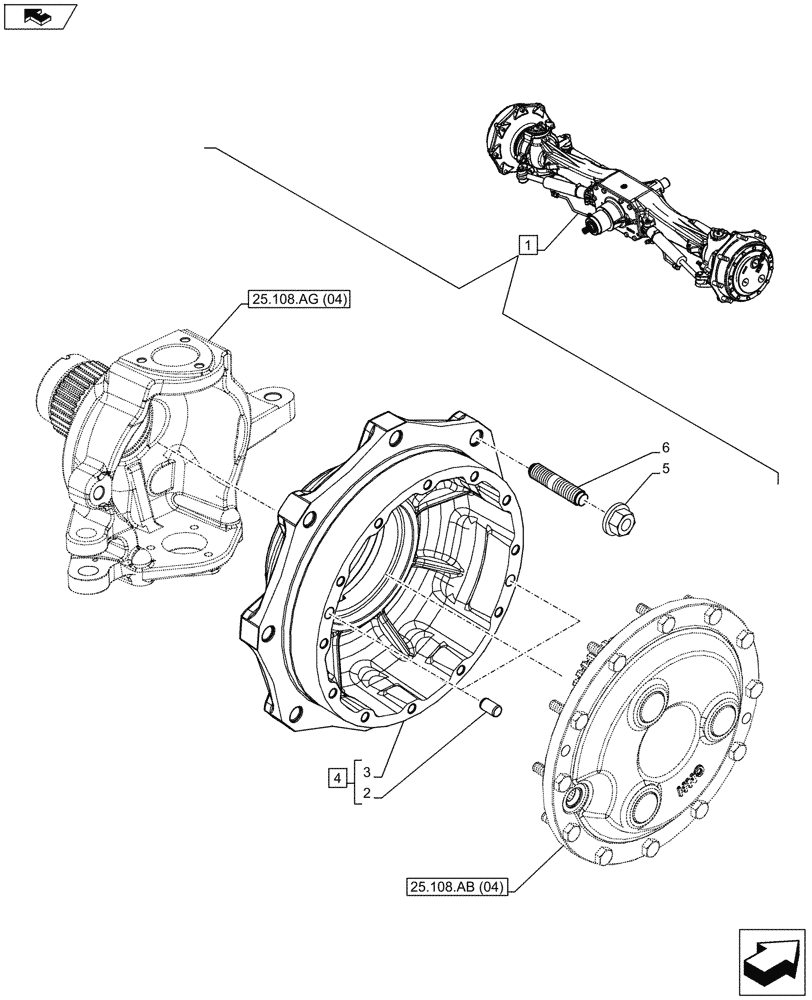

Запчасти Case IH MAXXUM 110 (25.108.AN[04]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 6

1шт.

See also Axle Components in Figure 25.100.AA (04), 25.100.AD (04), 25.102.AC (09), 25.102.AE (01), 25.108.AA (04), 25.108.AB (04), 25.108.AB (05), 25.108.AG (04), 41.106.AD (02), 41.216.AN (05), 41.216.AV (04), 55.047.AA (04)

1шт.

2

4985063

DOWEL,12mm OD x 20mm L

4шт.

3

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

2шт.

4

84270400

HUB

ASSY, Incl 2 (Qty 2), 3 (Qty 1)

2шт.

5

87678013

NUT,M16 x 1.5

16шт.

6

87618916

STUD

16шт.
