Запчасти Case IH MAXXUM 110 (25.108.AN[03]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

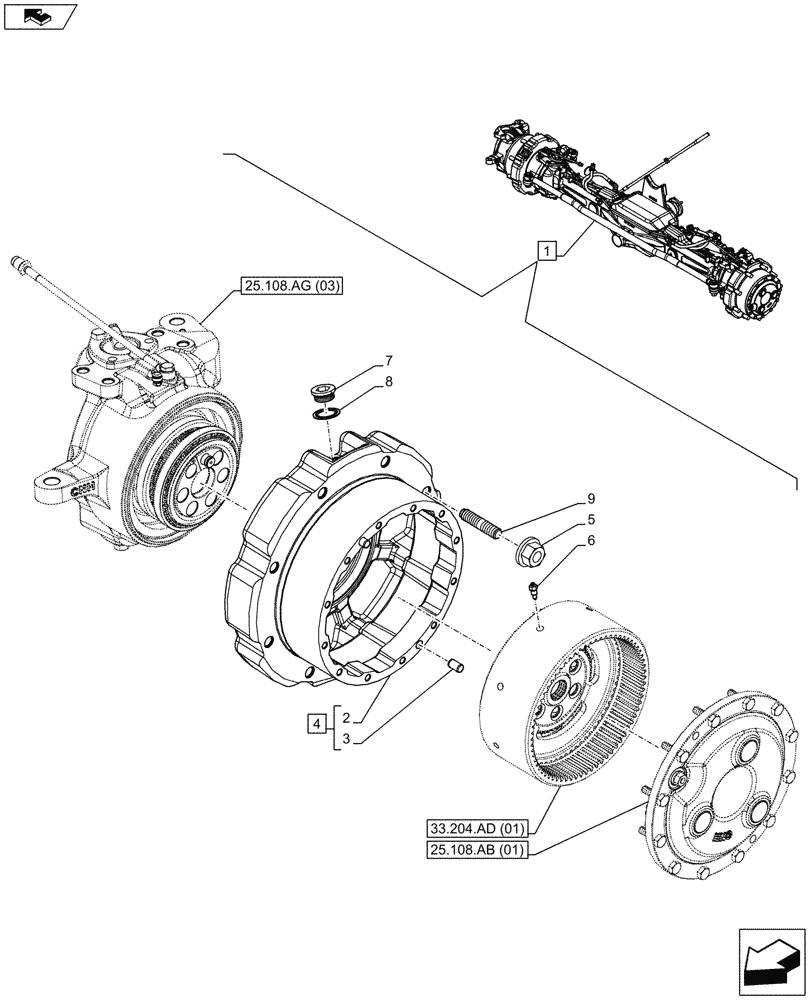

Схема запчастей Case IH MAXXUM 110 - (25.108.AN[03]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
33.204.ad (01)
5
9
8
2
7
3
home
4
6
1
25.108.ag (03)
25.108.ab (01)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.100.AD (03), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (03), 25.108.AB (01), 25.108.AG (03), 33.204.AD (01), 33.204.AD (02), 41.106.AD (01), 41.216.AN (04), 55.047.AA (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

2шт.

3

4985063

DOWEL,12mm OD x 20mm L

4шт.

4

87529978

HUB

ASSY, Incl 2 (Qty 1), 3 (Qty 2)

2шт.

5

87678013

NUT,M16 x 1.5

16шт.

6

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

7

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

8

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.

9

87618916

STUD

16шт.

Выбрано товаров: 10
