Запчасти Case IH MAXXUM 110 (25.108.AG[02]) - VAR - 330414 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

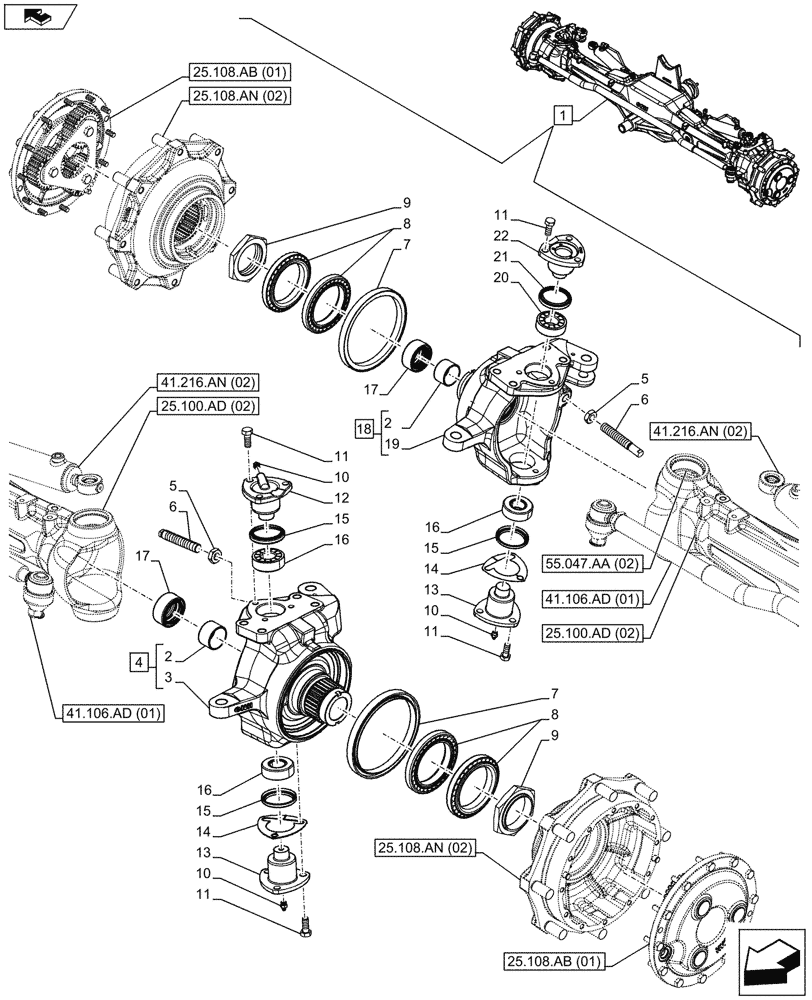

Схема запчастей Case IH MAXXUM 110 - (25.108.AG[02]) - VAR - 330414 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
25.100.ad (02)
11
home
9
1
13
8
6
3
16
15
10
7
19
22
11
16
16
21
10
15
7
10
4
14
13
14
2
2
5
17
11
17
15
5
8
9
18
20
6
12
11
25.108.an (02)
25.108.an (02)
41.216.an (02)
41.216.an (02)
41.106.ad (01)
41.106.ad (01)
25.108.ab (01)
25.108.ab (01)
55.047.aa (02)
25.100.ad (02)

Артикул

Название

Примечание

Количество

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 22

1шт.

See also Axle Components in Figure 25.100.AA (02), 25.100.AD (02), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (02), 25.108.AB (01), 25.108.AB (03), 25.108.AN (02), 41.106.AD (01), 41.216.AN (03), 55.047.AA (02)

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45mm ID x 50mm OD x 30mm

2шт.

3

NSS

NOT SOLD SEPARAT

Knucle, Incl in 4

1шт.

4

84196849

KNUCKLE,LH

ASSY, LH, Incl 2 (Qty 1), 3

1шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

6

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

7

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

2шт.

8

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

4шт.

9

5142020

NUT,Hex, M75 x 2

2шт.

10

13407211

LUBE NIPPLE,M10 x 1

3шт.

11

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

87361688

BALL STUD

1шт.

13

87333763

BALL STUD

2шт.

14

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

14

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

14

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

14

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

14

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

15

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

16

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

17

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

18

84196952

KNUCKLE,RH

ASSY, RH, Incl 2 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Knucle, Incl in 18

1шт.

20

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

21

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

22

87382577

BALL STUD

1шт.

Выбрано товаров: 27
