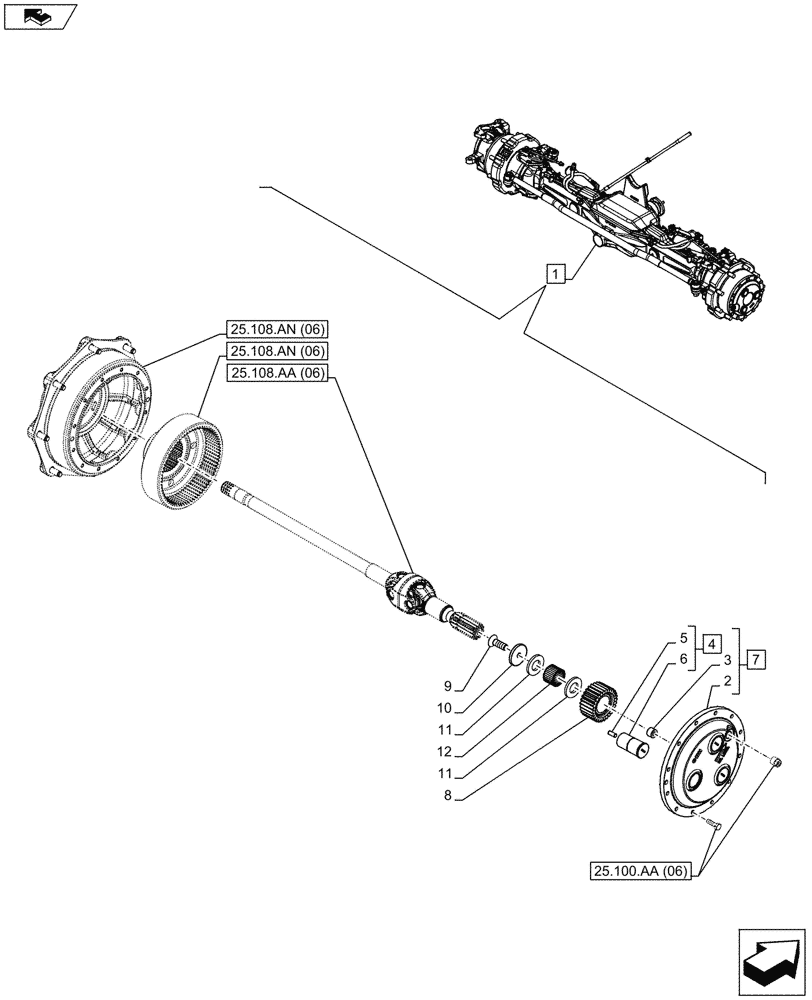

Запчасти Case IH MAXXUM 110 (25.108.AB[08]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (06), 25.100.AD (06), 25.102.AC (11), 25.102.AE (02), 25.108.AA (06), 25.108.AG (06), 25.108.AN (06), 33.204.AD (03), 33.204.AD (04), 41.106.AD (02), 41.216.AN (07), 41.216.AV (06), 55.047.AA (06)

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

3

87604978

BUSHING

1шт.

4

87471121

PIN

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

3шт.

5

10333210

DOWEL,M4 x 10.00mm

3шт.

6

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

3шт.

7

87473022

PLANET CARRIER

ASSY, Incl 2 - 4

1шт.

8

87330345

IDLER PINION

3шт.

9

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

3шт.

10

87681967

SPACER

3шт.

11

87330360

THRUST WASHER

6шт.

12

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

3шт.
