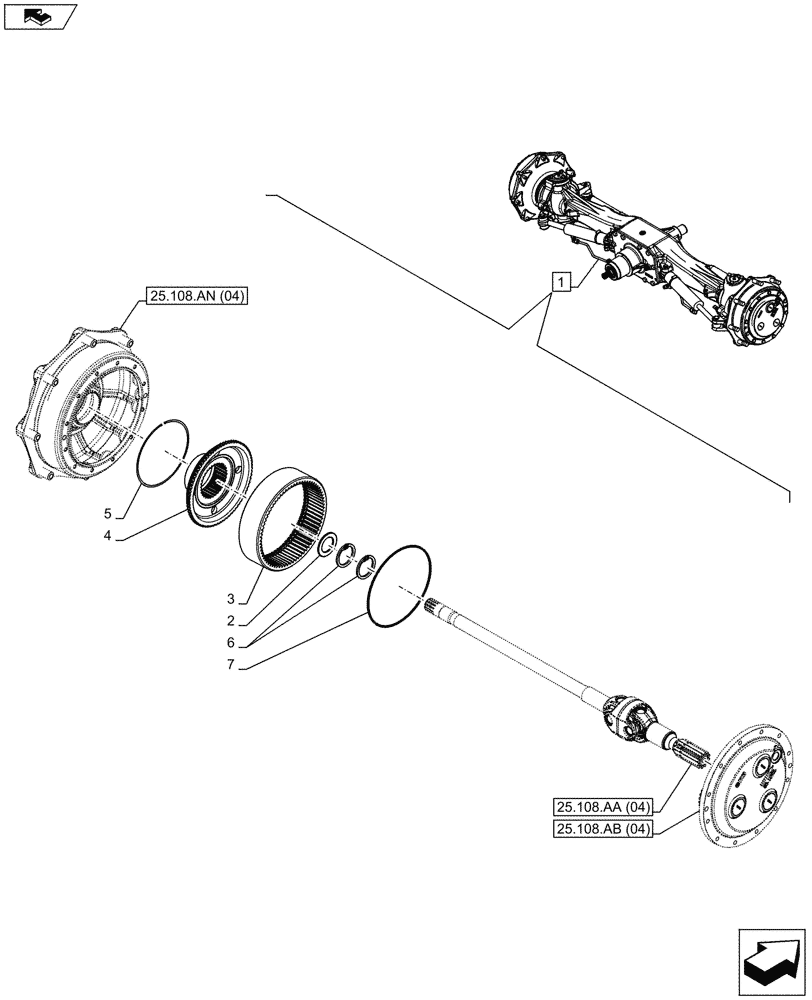

Запчасти Case IH MAXXUM 110 (25.108.AB[05]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 7

1шт.

See also Axle Components in Figure 25.100.AA (04), 25.100.AD (04), 25.102.AC (09), 25.102.AE (01), 25.108.AA (04), 25.108.AB (04), 25.108.AG (04), 25.108.AN (04), 41.106.AD (02), 41.216.AN (05), 41.216.AV (04), 55.047.AA (04)

1шт.

2

87525785

RING

2шт.

3

87330371

RING GEAR

2шт.

4

87330372

RING GEAR

2шт.

5

87330370

SNAP RING,242.20mm ID

2шт.

6

87592363

NOTCHED DISK

2шт.

7

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

2шт.
