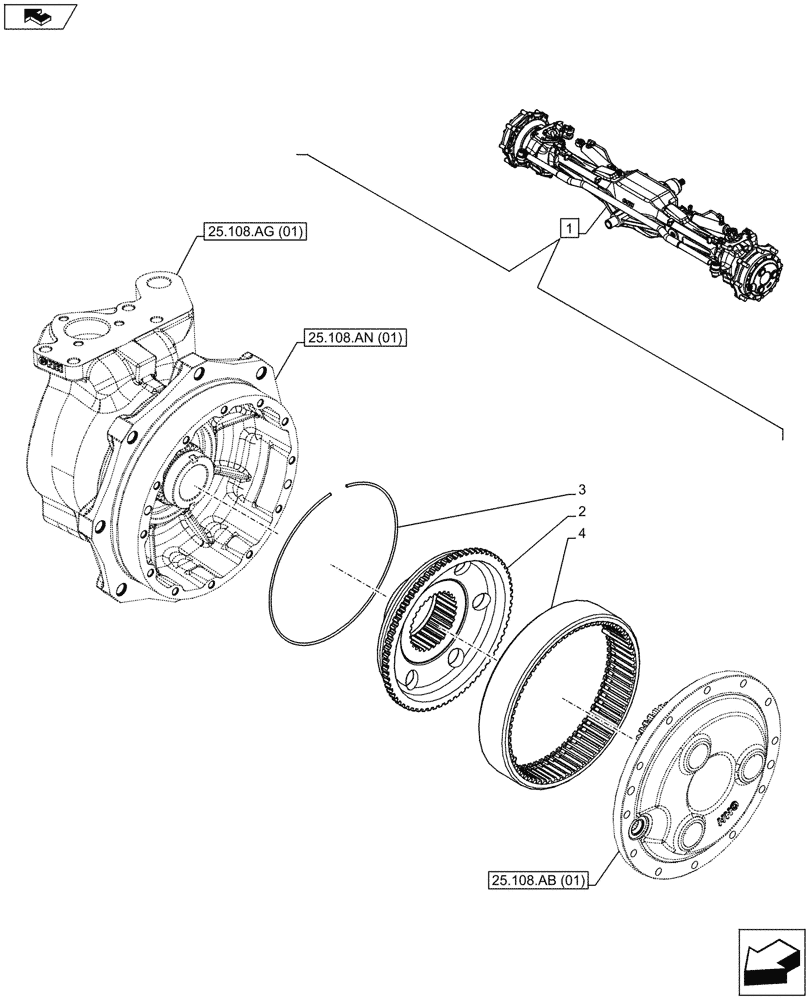

Запчасти Case IH MAXXUM 110 (25.108.AB[02]) - VAR - 390409 - CLASS 3, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING KNUCKLE, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 4

1шт.

See also Axle Components in Figure 25.100.AA (01), 25.100.AD (01), 25.102.AC (01), 25.102.AD (01), 25.102.AS (01), 25.108.AA (01), 25.108.AB (01), 25.108.AG (01), 25.108.AN (01), 41.106.AD (01), 41.216.AN (01), 55.047.AA (01)

1шт.

2

84224948

NOTCHED DISK

2шт.

3

5151438

LOCKING RING,222mm ID, Int

2шт.

4

5191770

RING GEAR

2шт.
