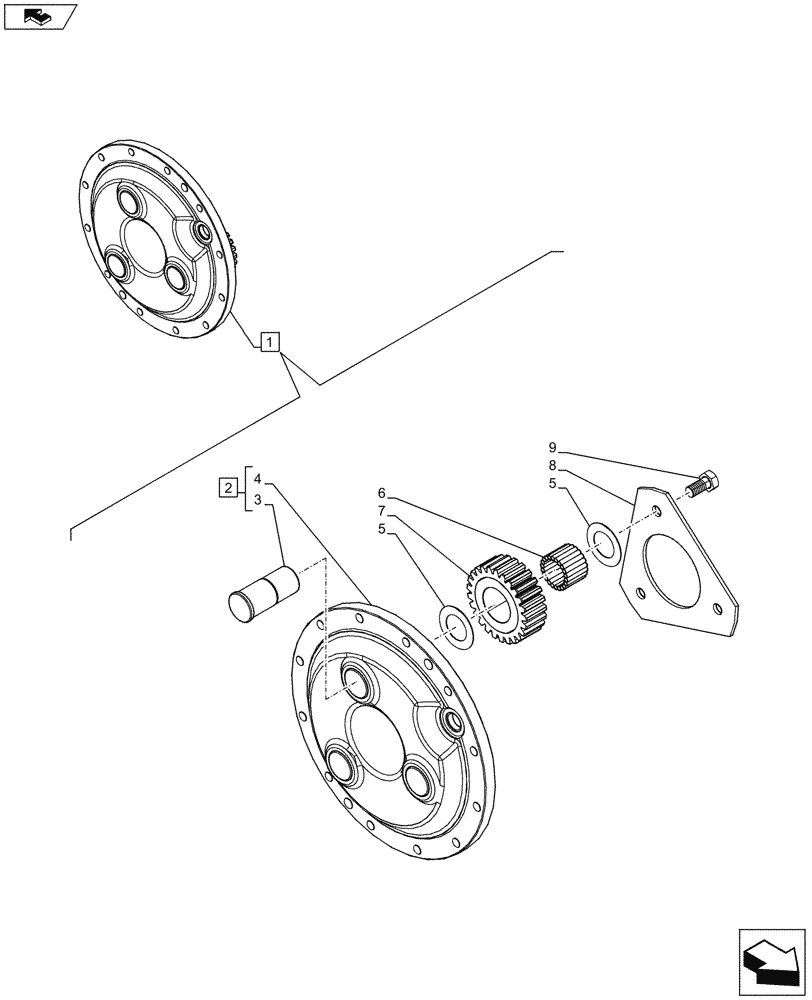

Запчасти Case IH MAXXUM 110 (25.108.AB[01]) - VAR - 390409, 330414, 330427 - CLASS 3, FRONT AXLE, W/ STEERING SENSORS, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

87310632

CARRIER

ASSY, Incl 2 - 9

2шт.

2

47603066

SUPPORT

ASSY, Incl 3, 4

1шт.

3

47603120

PIN,30 mm OD x 73 mm L

3шт.

4

NSS

NOT SOLD SEPARAT

Planet Carrier, Incl in 2

1шт.

5

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

6шт.

6

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

7

5145497

PLANETARY GEAR,25T

Z 25

3шт.

8

5152324

LOCKING RING,4mm Thk

1шт.

9

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.
