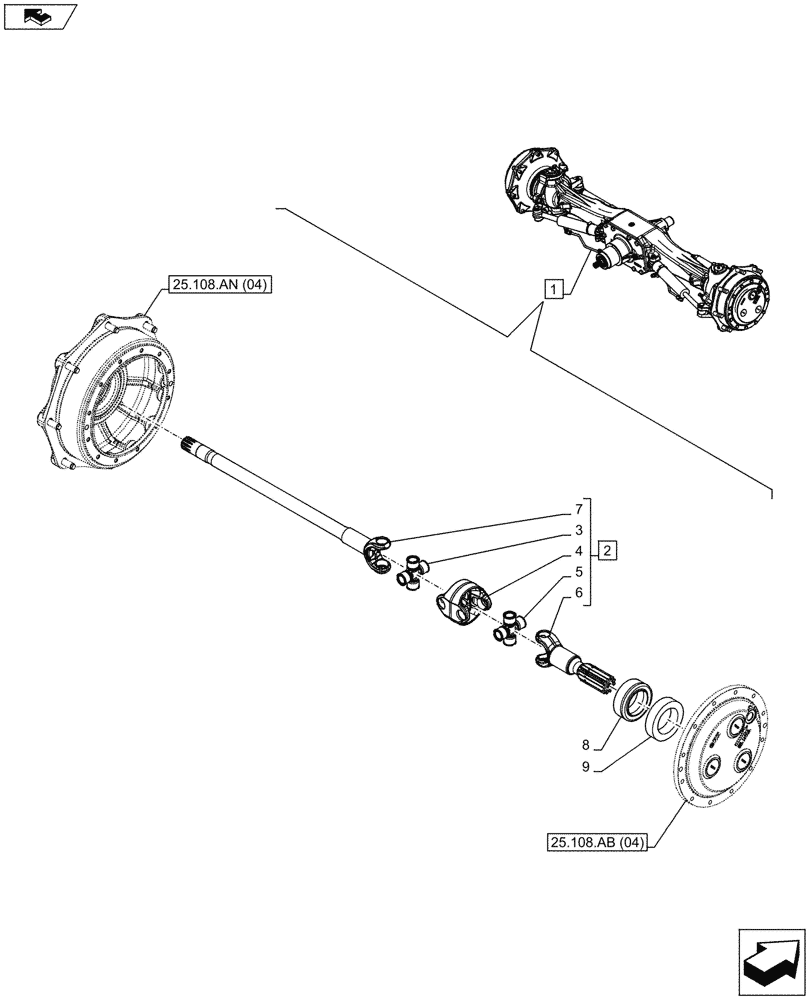

Запчасти Case IH MAXXUM 110 (25.108.AA[04]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, SHAFT (25) - FRONT AXLE SYSTEM

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

See also Axle Components in Figure 25.100.AA (04), 25.100.AD (04), 25.102.AC (09), 25.102.AE (01), 25.108.AB (04), 25.108.AB (05), 25.108.AG (04), 25.108.AN (04), 41.106.AD (02), 41.216.AN (05), 41.216.AV (04), 55.047.AA (04)

1шт.

2

87743318

SHAFT

ASSY, LH, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1), 6 (Qty 1), 7

1шт.

2

87743319

SHAFT

ASSY, RH, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1), 6 (Qty 1), 7

1шт.

3

87747761

CIRCLIP

2шт.

4

87747754

YOKE

2шт.

5

47482153

U-JOINT SPIDER,30.15mm Cap Dia, 81.9mm L

2шт.

6

87747757

SHORT SHAFT FORK,233.60mm

2шт.

7

87747753

LONG SHAFT FORK,728.00mm

LH

1шт.

7

87747751

LONG SHAFT FORK,708.00mm

RH

1шт.

8

87397905

OIL SEAL,52.00mm ID x 72.00mm OD x 16.50mm

2шт.

9

87598114

SPACER,53.00mm ID x 78.00mm OD x 4.00mm

2шт.
