(25.108.AA[02]) - VAR - 330414 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, SHAFT

Запчасти Case IH MAXXUM 110 (25.108.AA[02]) - VAR - 330414 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, SHAFT (25) - FRONT AXLE SYSTEM

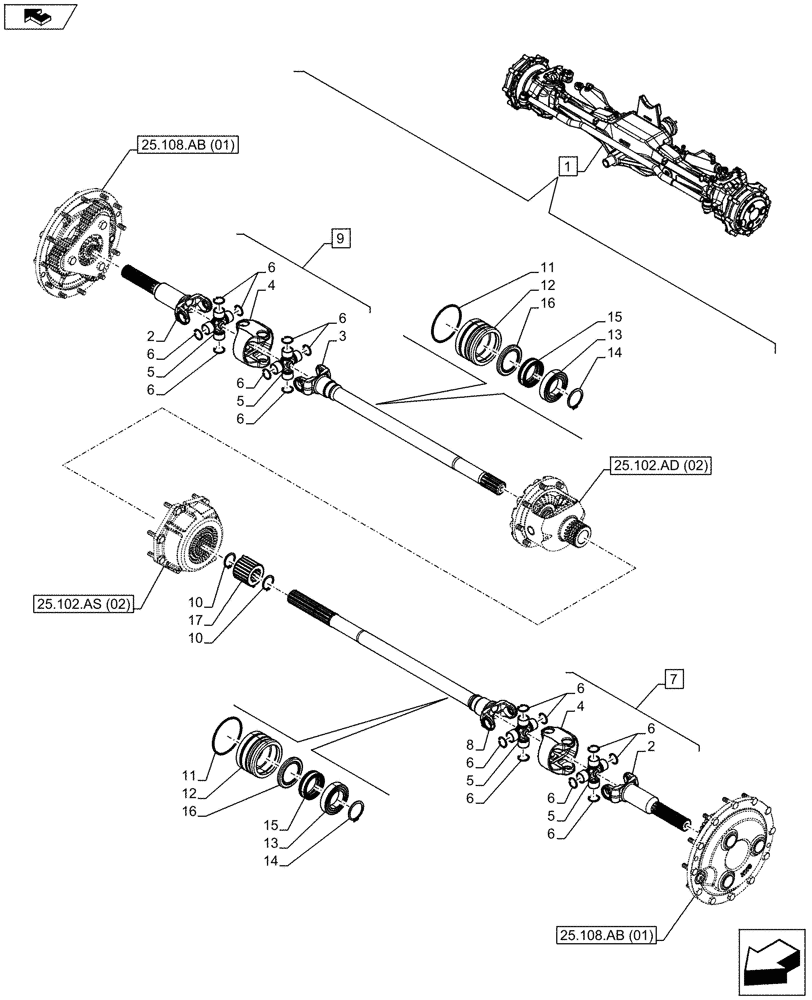

Схема запчастей Case IH MAXXUM 110 - (25.108.AA[02]) - VAR - 330414 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, SHAFT (25) - FRONT AXLE SYSTEM
25.108.ab (01)
5
6
6
13
4
7
16
12
17
14
15
10
5
11
home
8
6
2
2
1
11
10
6
6
6
13
4
9
15
6
5
16
6
14
3
12
6
6
6
25.102.as (02)
25.102.ad (02)
6
5
25.108.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 17

1шт.

See also Axle Components in Figure 25.100.AA (02), 25.100.AD (02), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AB (01), 25.108.AB (03), 25.108.AG (02), 25.108.AN (02), 41.106.AD (01), 41.216.AN (03), 55.047.AA (02)

1шт.

2

84201642

SHORT SHAFT FORK

2шт.

3

5197765

LONG SHAFT FORK,733.00mm

RH

1шт.

4

87361042

YOKE

2шт.

5

5191547

U-JOINT SPIDER

4шт.

6

5191548

CIRCLIP

16шт.

7

84194820

ARTICULATED SHAFT

ASSY, LH, Incl 2 (Qty1), 4 (Qty 1), 5 (Qty 2), 6 (Qty 8), 8

1шт.

8

5197763

LONG SHAFT FORK,671.00mm

LH

1шт.

9

84194811

SHAFT

ASSY, RH, Incl 2 (Qty1), 3, 4 (Qty 1), 5 (Qty 2), 6 (Qty 8)

1шт.

10

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

11

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

12

84197406

BUSHING

2шт.

13

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

14

11068876

SNAP RING,M40, Ext

2шт.

15

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

16

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

17

5153390

HUB

1шт.
