Запчасти Case IH MAXXUM 110 (25.102.AE[01]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM

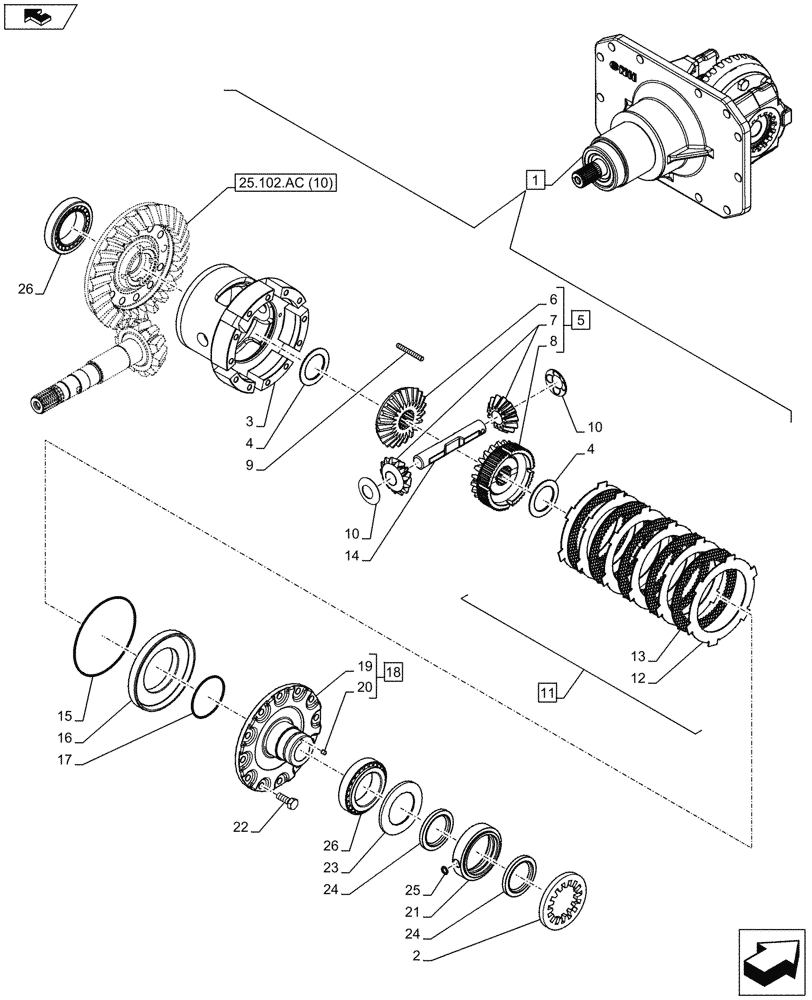

Схема запчастей Case IH MAXXUM 110 - (25.102.AE[01]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM
25.102.ac (10)
5
16
2
15
13
3
1
4
6
17
24
20
19
9
14
18
10
23
12
home
21
26
26
25
24
10
8
7
11
4
22

Артикул

Название

Примечание

Количество

1

84294283

DIFFERENTIAL ASSY

ASSY, Incl 2 - 26

1шт.

See also Differential Components in Figure 25.102.AC (09), 25.102.AC (10)

1шт.

2

47129254

RING NUT

1шт.

3

87331244

HOUSING

1шт.

4

5192475

SHIM,45.00mm ID x 66.00mm OD x 3.00mm

2шт.

4

5192568

SHIM,45.00mm ID x 66.00mm OD x 2.60mm

1шт.

4

5192569

SHIM,45.00mm ID x 66.00mm OD x 2.70mm

1шт.

4

5192570

SHIM,45.00mm ID x 66.00mm OD x 2.80mm

1шт.

4

5192571

SHIM,45.00mm ID x 66.00mm OD x 2.90mm

1шт.

4

5192572

SHIM,45.00mm ID x 66.00mm OD x 3.10mm

1шт.

4

5192573

SHIM,45.00mm ID x 66.00mm OD x 3.20mm

1шт.

4

5192574

SHIM,45.00mm ID x 66.00mm OD x 3.30mm

1шт.

4

5192575

SHIM,45.00mm ID x 66.00mm OD x 3.40mm

1шт.

5

47129159

GEAR SET

ASSY, Incl 6 - 8

1шт.

6

5192474

GEAR

RH

1шт.

7

5103870

PINION,24mm ID, 13T

2шт.

8

5192488

GEAR

LH

1шт.

9

87357828

PIN

1шт.

10

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

11

47126660

CLUTCH PLATE

ASSY, Incl 12, 13

1шт.

12

5192489

DISC

6шт.

13

5193452

DISC

5шт.

14

87329332

AXLE DIFFERENTIAL

1шт.

15

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.

16

5192492

PISTON

1шт.

17

14465181

O-RING,2.859" ID x 3.127" OD x 0.139"

1шт.

18

87331240

HALF-FLANGE

ASSY, Incl 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Housing, Incl in 18

1шт.

20

5198864

PLUG

1шт.

21

47129260

HOUSING

1шт.

22

84394072

BOLT,M10 x 1.25 x 30mm

12шт.

23

47129259

SPACER,59.00mm ID x 94.50mm OD x 6.00mm

1шт.

24

47132472

SEAL,55.00mm x 72.00mm x 7/7.50mm

2шт.

25

5192501

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

26

87568699

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

Выбрано товаров: 35
