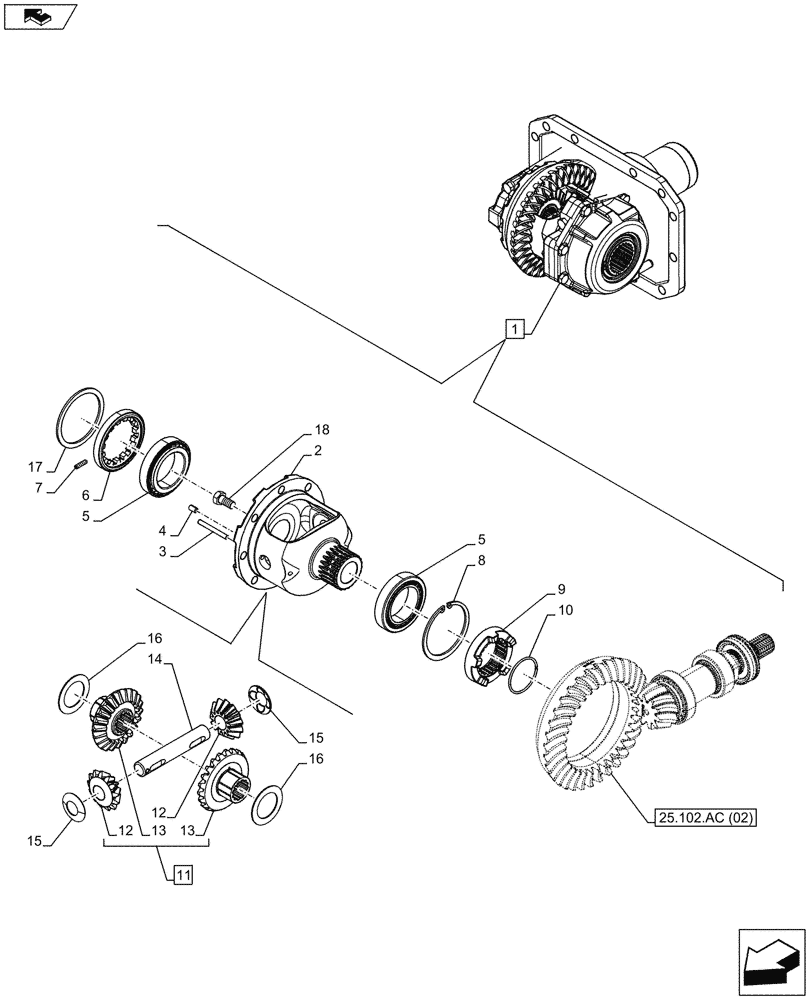

Запчасти Case IH MAXXUM 110 (25.102.AD[01]) - VAR - 390409 - CLASS 3, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, GEAR (25) - FRONT AXLE SYSTEM

1

87530114

DIFFERENTIAL ASSY

ASSY, Incl 2 - 18

1шт.

See also Differential Components in Figure 25.102.AC (01), 25.102.AC (02), 25.102.AC (03), 25.102.AC (04), 25.102.AS (01)

1шт.

2

5174842

HOUSING

1шт.

3

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

4

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

5

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

6

4996750

RING NUT,M100 x 2

1шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

9

5153349

SLEEVE

1шт.

10

5153351

SNAP RING,55.5mm ID

1шт.

11

47134168

DIFFERENTIAL GEAR

ASSY, Incl 12, 13

1шт.

12

5103870

PINION,24mm ID, 13T

2шт.

13

5103868

PINION,12/22T

2шт.

14

5148935

PIN,24mm OD x 144mm L

1шт.

15

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

16

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

2шт.

16

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

16

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

16

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

16

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

16

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

16

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

16

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

16

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

17

5141460

SHIM,83mm ID x 94.9mm OD x 0.9mm Thk

1шт.

17

5141461

SHIM,83mm ID x 94.9mm OD x 1mm Thk

1шт.

17

5141462

SHIM,83mm ID x 94.9mm OD x 1.1mm Thk

1шт.

17

5141463

SHIM,83mm ID x 94.9mm OD x 1.2mm Thk

1шт.

17

5141464

SHIM,83mm ID x 94.9mm OD x 1.3mm Thk

1шт.

17

5141465

SHIM,83mm ID x 94.9mm OD x 1.4mm Thk

1шт.

17

5141466

SHIM,83mm ID x 94.9mm OD x 1.5mm Thk

1шт.

17

5141467

SHIM,83.00mm ID x 94.50mm OD x 1.60mm T

1шт.

17

5141468

SHIM,83mm ID x 94.9mm OD x 1.7mm Thk

1шт.

17

5141469

SHIM,83mm ID x 94.9mm OD x 1.8mm Thk

1шт.

17

5141470

SHIM,83.00mm ID x 94.50mm OD x 1.90mm T

1шт.

17

5141471

SHIM,83.00mm ID x 94.50mm OD x 2.00mm T

1шт.

18

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
