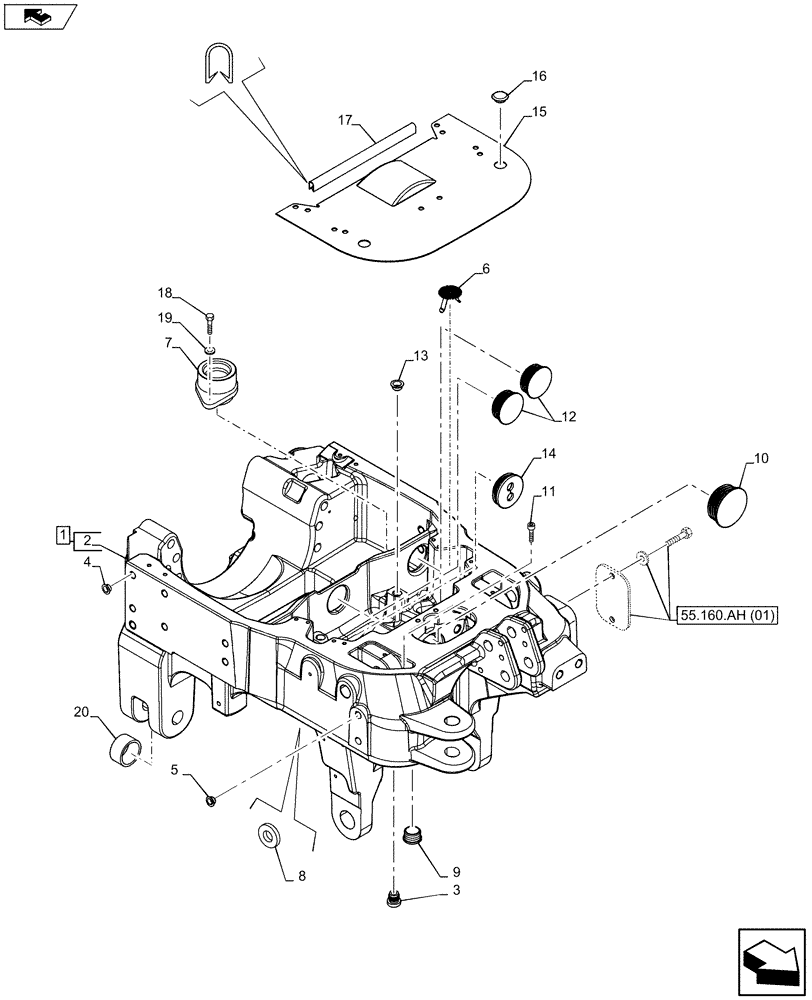

Запчасти Case IH MAXXUM 110 (25.100.AV[09]) - VAR - 334648, 335831, 337831, 743699, 743700 - HYDRAULIC LIFT, SUPPORT, PTO (25) - FRONT AXLE SYSTEM

1

87563272

HITCH

ASSY, Incl 2

1шт.

2

84380304

SUPPORT

1шт.

3

83908579

PLUG,M7.62

2шт.

4

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

5

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

6

82021866

GRILLE

1шт.

7

82030470

SUPPORT

1шт.

8

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

8

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

8

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

8

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

8

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

8

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

8

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

8

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

8

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

8

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

9

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

10

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

11

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

12

82023395

PLUG,60mm ID

2шт.

13

87523187

PLUG,M12 x 1.5

2шт.

14

82023398

PLUG

1шт.

15

87565348

COVER

1шт.

16

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

17

83964601

MOLDING,164mm L

2шт.

18

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

19

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

20

82018767

SPACER,34mm ID x 44mm OD x 15.5mm L

2шт.
