Запчасти Case IH MAXXUM 110 (25.100.AV[03]) - VAR - 390409 - CLASS 3, FRONT AXLE, SUPPORT (25) - FRONT AXLE SYSTEM

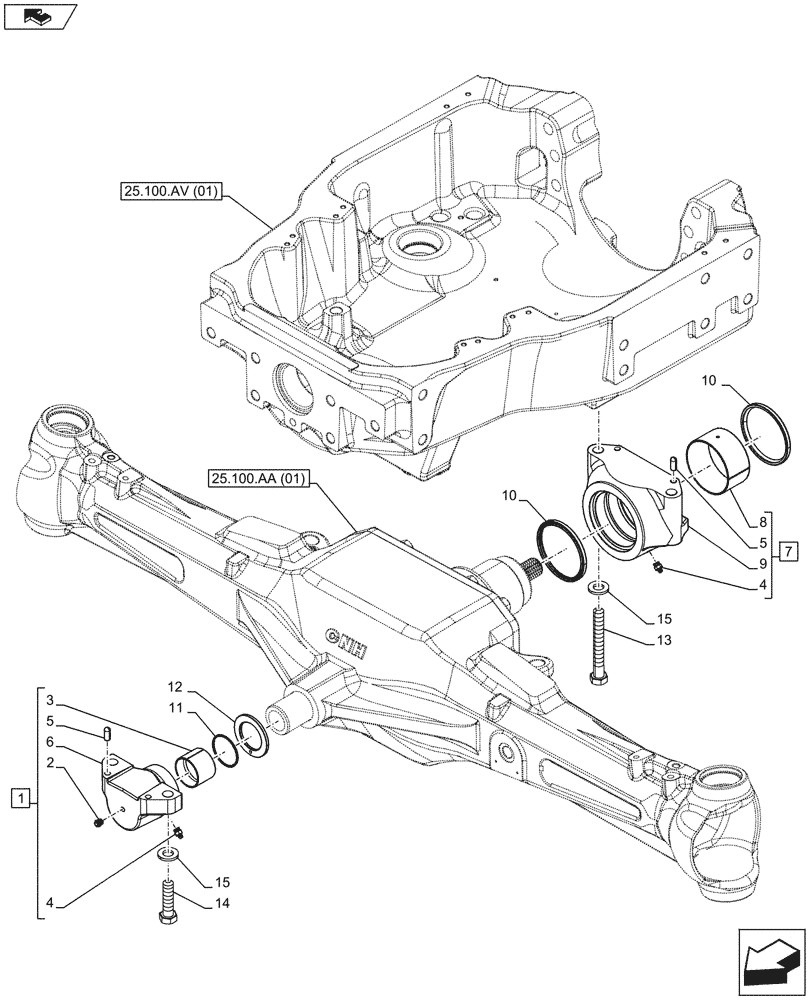

Схема запчастей Case IH MAXXUM 110 - (25.100.AV[03]) - VAR - 390409 - CLASS 3, FRONT AXLE, SUPPORT (25) - FRONT AXLE SYSTEM
25.100.av (01)
1
2
14
3
8
10
5
15
13
11
9
4
6
4
10
5
12
home
15
7
25.100.aa (01)

Артикул

Название

Примечание

Количество

1

87311589

TRUNNION

ASSY, Incl 2, 3, 4 (Qty 1), 5 (Qty 2), 6

1шт.

2

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

3

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

5

10837710

DOWEL,M10 x 25

4шт.

6

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 1

1шт.

7

87515300

TRUNNION

ASSY, Incl 4 (Qty 1), 5 (Qty 2), 8, 9

1шт.

8

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

9

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 9

1шт.

10

5140455

SEALING RING

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

13

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

14

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

15

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

Выбрано товаров: 15
