Запчасти Case IH MAXXUM 110 (25.100.AD[04]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, HOUSING (25) - FRONT AXLE SYSTEM

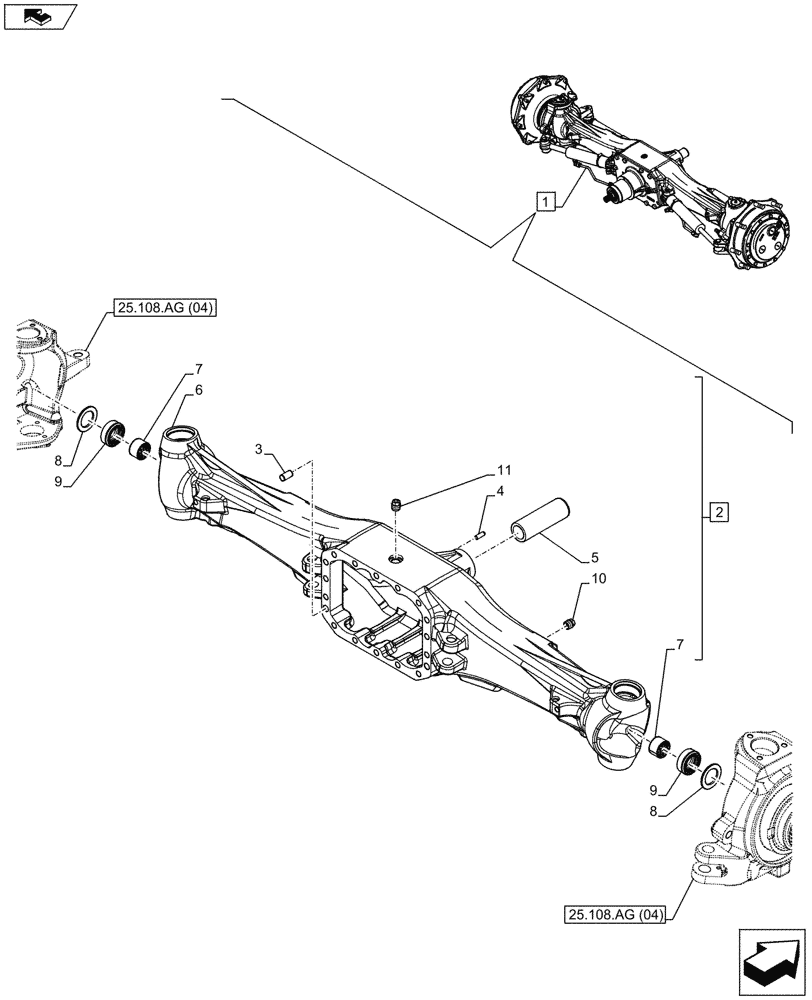

Схема запчастей Case IH MAXXUM 110 - (25.100.AD[04]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, HOUSING (25) - FRONT AXLE SYSTEM
25.108.ag (04)
3
8
7
9
6
4
10
home
8
2
11
1
7
9
5
25.108.ag (04)

Артикул

Название

Примечание

Количество

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 11

1шт.

See also Axle Components in Figure 25.100.AA (04), 25.102.AC (09), 25.102.AE (01), 25.108.AA (04), 25.108.AB (04), 25.108.AB (05), 25.108.AG (04), 25.108.AN (04), 41.106.AD (02), 41.216.AN (05), 41.216.AV (04), 55.047.AA (04)

1шт.

2

87633677

AXLE HOUSING

ASSY, Incl 3 - 7

1шт.

3

5174376

DOWEL,M16 x 30

2шт.

4

4966244

PIN,5mm OD x 15mm L

1шт.

5

5140017

PIN,52.65mm OD x 153.00mm

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

7

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

8

87598115

SPACER

2шт.

9

87349670

SEAL,42mm ID x 62mm OD x 23mm Thk

2шт.

10

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

Выбрано товаров: 12
