Запчасти Case IH MAXXUM 110 (25.100.AD[03]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HOUSING (25) - FRONT AXLE SYSTEM

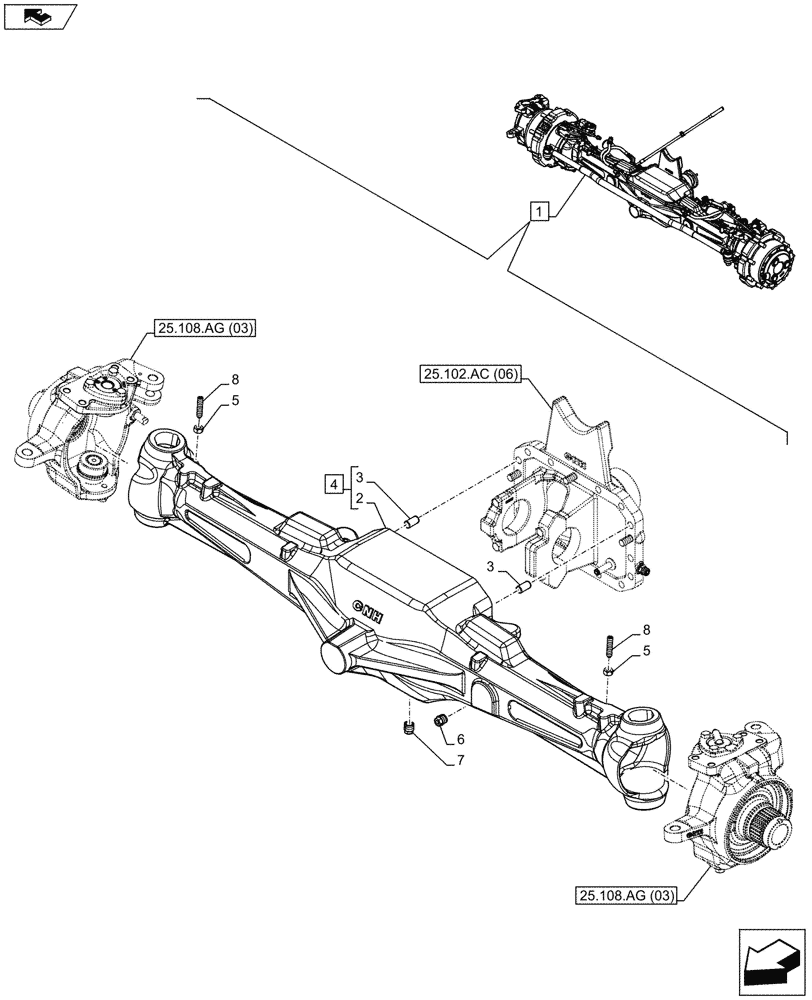

Схема запчастей Case IH MAXXUM 110 - (25.100.AD[03]) - VAR - 330427 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HOUSING (25) - FRONT AXLE SYSTEM
25.102.ac (06)
1
7
6
5
8
5
3
2
home
3
4
8
25.108.ag (03)
25.108.ag (03)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 8

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (03), 25.108.AB (01), 25.108.AG (03), 25.108.AN (03), 33.204.AD (01), 33.204.AD (02), 41.106.AD (01), 41.216.AN (04), 55.047.AA (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 4

1шт.

3

5174376

DOWEL,M16 x 30

2шт.

4

87633190

AXLE HOUSING

ASSY, Incl 2, 3

1шт.

5

16101511

NUT,M12 x 1.25, Cl 8

2шт.

6

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

Выбрано товаров: 9
