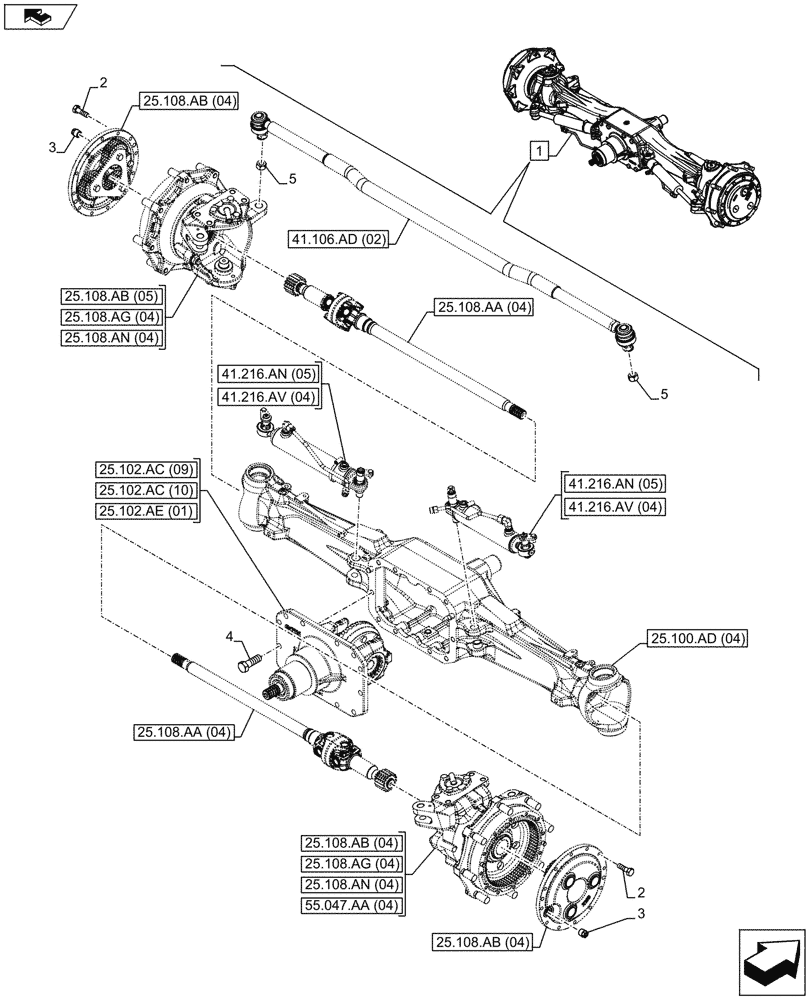

Запчасти Case IH MAXXUM 110 (25.100.AA[04]) - VAR - 330408 - CLASS 4, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS (25) - FRONT AXLE SYSTEM

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 5

1шт.

See also Axle Components in Figure 25.100.AD (04), 25.102.AC (09), 25.102.AE (01), 25.108.AA (04), 25.108.AB (04), 25.108.AB (05), 25.108.AG (04), 25.108.AN (04), 41.106.AD (02), 41.216.AN (05), 41.216.AV (04), 55.047.AA (04)

1шт.

2

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

3

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

4

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

5

12575021

NUT,M18 x 1.5, Cl 10

2шт.
