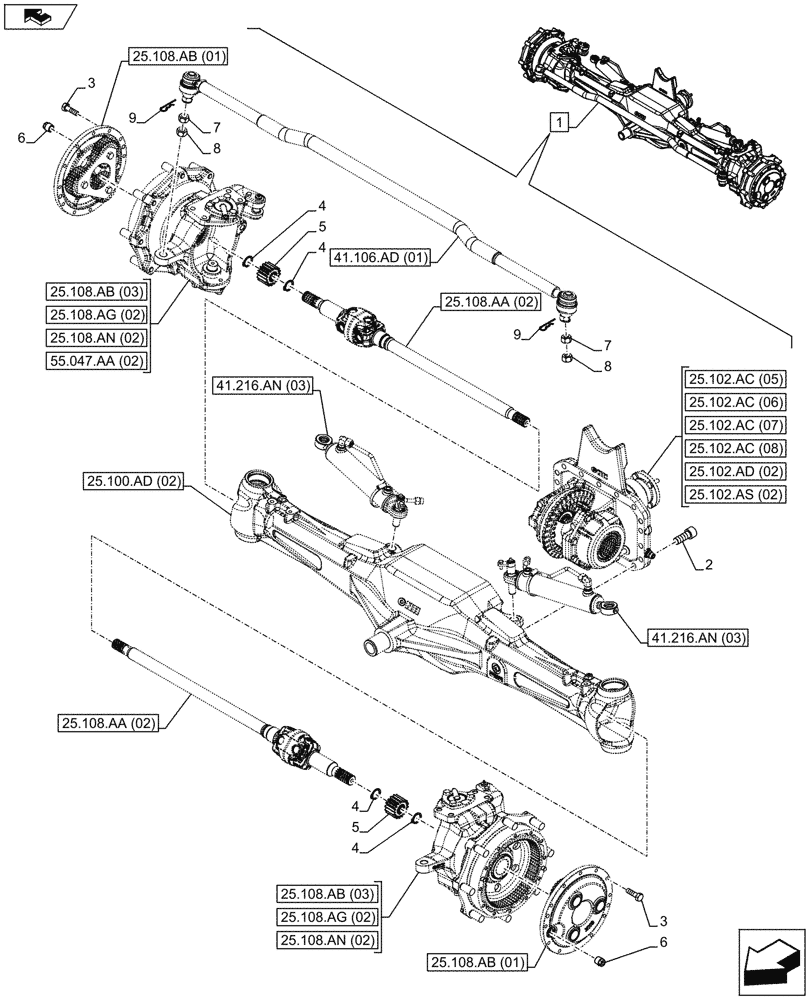

Запчасти Case IH MAXXUM 110 (25.100.AA[02]) - VAR - 330414 - CLASS 3, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR (25) - FRONT AXLE SYSTEM

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

See also Axle Components in Figure 25.100.AD (02), 25.102.AC (05), 25.102.AD (02), 25.102.AS (02), 25.108.AA (02), 25.108.AB (01), 25.108.AB (03), 25.108.AG (02), 25.108.AN (02), 41.106.AD (01), 41.216.AN (03), 55.047.AA (02)

1шт.

2

14313774

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 12.9, Full Thd

4шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

4

5140018

SNAP RING,M30, Ext

4шт.

5

5145501

SUN GEAR,16T

Z 16

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

Use for all Ball Except for Ehrenreich Ball

1шт.

8

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

2шт.

Use only for Ehrenreich Ball

1шт.

9

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

Use only for Ehrenreich Ball

1шт.
