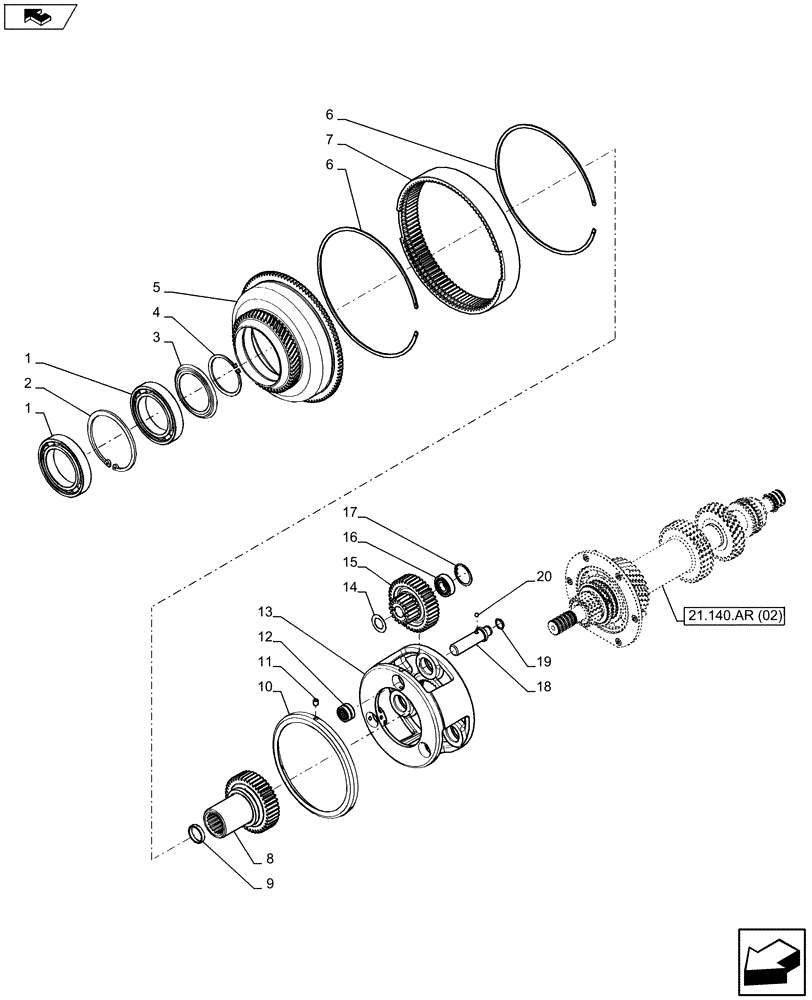

Запчасти Case IH MAXXUM 110 (21.140.AR[01]) - VAR - 390283 - TRANSMISSION, REVERSER (21) - TRANSMISSION

1

87588896

BALL BEARING,75mm ID x 115mm OD x 20mm W

2шт.

2

11075676

SNAP RING,M115, Int

1шт.

3

84574800

SPECIAL WASHER

1шт.

4

11070576

SNAP RING,M75, Ext

1шт.

5

84558239

RING GEAR

1шт.

6

84585775

LOCKING RING

2шт.

7

84560092

RING GEAR

1шт.

8

84560101

SUN GEAR

Sun

1шт.

9

47439650

SPACER,30mm ID x 34.5mm OD x 6.2mm L

6.2mm Thickness

1шт.

9

84560198

SPACER,30mm ID x 34.5mm OD x 6.4mm L

6.4mm Thickness

1шт.

9

84560197

SPACER,30mm ID x 34.5mm OD x 6.6mm L

6.6mm Thickness

1шт.

9

84560195

SPACER,30mm ID x 34.5mm OD x 6.8mm L

6.8mm Thickness

1шт.

9

84560194

SPACER,30mm ID x 34.5mm OD x 7mm L

7.0mm Thickness

1шт.

9

84560193

SPACER,30mm ID x 34.5mm OD x 7.3mm L

7.3mm Thickness

1шт.

10

84559673

STOP LOCK

1шт.

11

84192268

DOWEL,8mm OD x 10mm L

3шт.

12

84559674

NEEDLE BEARING,Needle, 21mm ID x 29mm OD x 16mm W

3шт.

13

84559671

PINION CARRIER

1шт.

14

84203723

SHIM,21mm ID x 35mm OD x 1.0mm Thk

3шт.

15

84559682

IDLER PINION

Planet

3шт.

16

84560188

ROLLER BEARING,17mm ID x 40mm OD x 12mm W

3шт.

17

11059976

SNAP RING,M40, Int

3шт.

18

84559676

PIN,26.5mm OD x 90.2mm L

3шт.

19

11066571

SNAP RING,M17, Ext

3шт.

20

83416928

BALL,1/4 OD

3шт.
