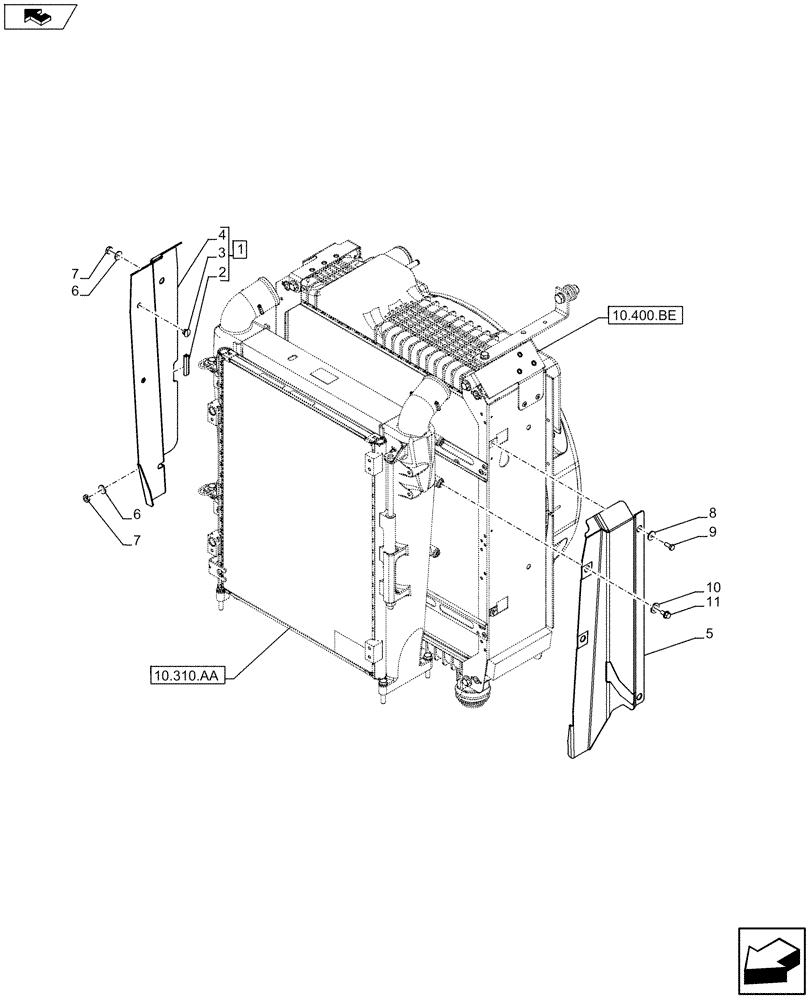

Запчасти Case IH MAXXUM 110 (10.400.BF[04]) - VAR - 390158 - RADIATOR, AIRFLAP (10) - ENGINE

1

47447470

PLATE

ASSY, Incl 2 - 4

1шт.

2

47447467

GASKET

1шт.

3

82003283

PLUG,10.5mm OD

2шт.

4

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

5

47447529

PLATE

1шт.

6

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

7

14047317

NUT,M8 x 1.25

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

9

10902230

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

10

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

11

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.
