Запчасти Case IH MAXXUM 110 (90.160.AX[03]) - CAB INTERIOR TRIM WITH SUN CURTAIN FOR ROOF WITH HIGH PROFILE - HEADLINER - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

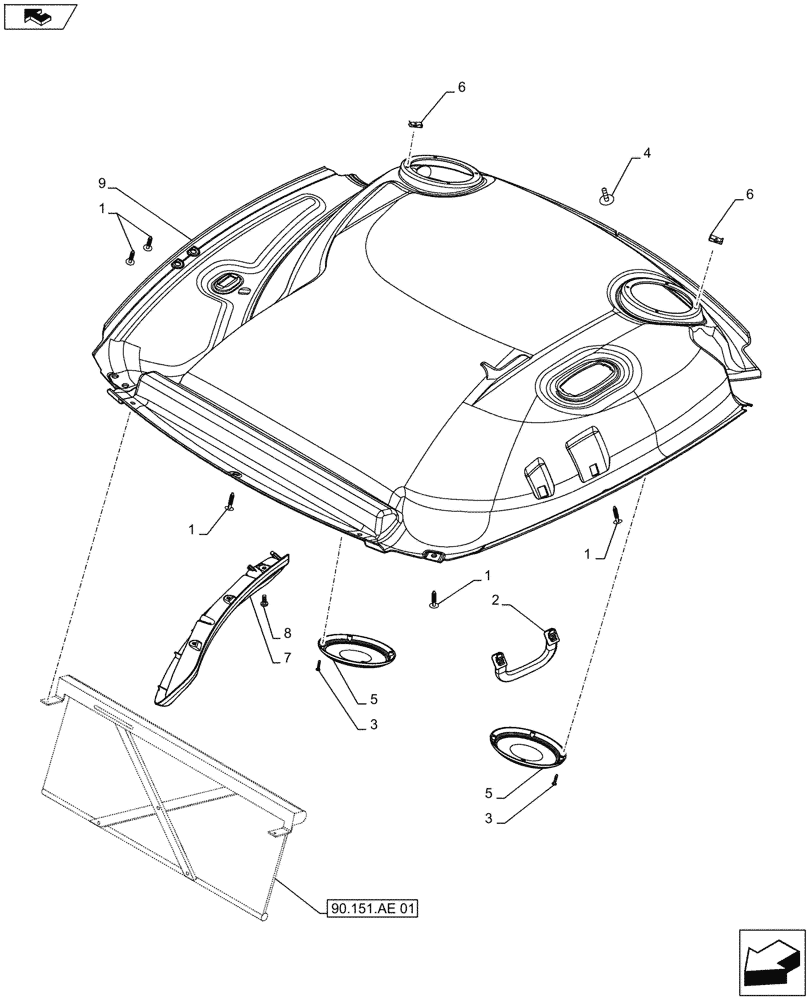

Схема запчастей Case IH MAXXUM 110 - (90.160.AX[03]) - CAB INTERIOR TRIM WITH SUN CURTAIN FOR ROOF WITH HIGH PROFILE - HEADLINER - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ae 01
1
1
5
1
8
5
3
7
4
3
6
6
9
1
2
home

Артикул

Название

Примечание

Количество

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

5шт.

2

84227380

HANDLE

1шт.

3

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

5

82022875

GRILLE,185mm OD

2шт.

6

81872135

NUT,Retaining, M4.20

8шт.

7

87673408

CONSOLE

1шт.

8

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

3шт.

9

87621050

ROOF LINING

1шт.

Выбрано товаров: 9
