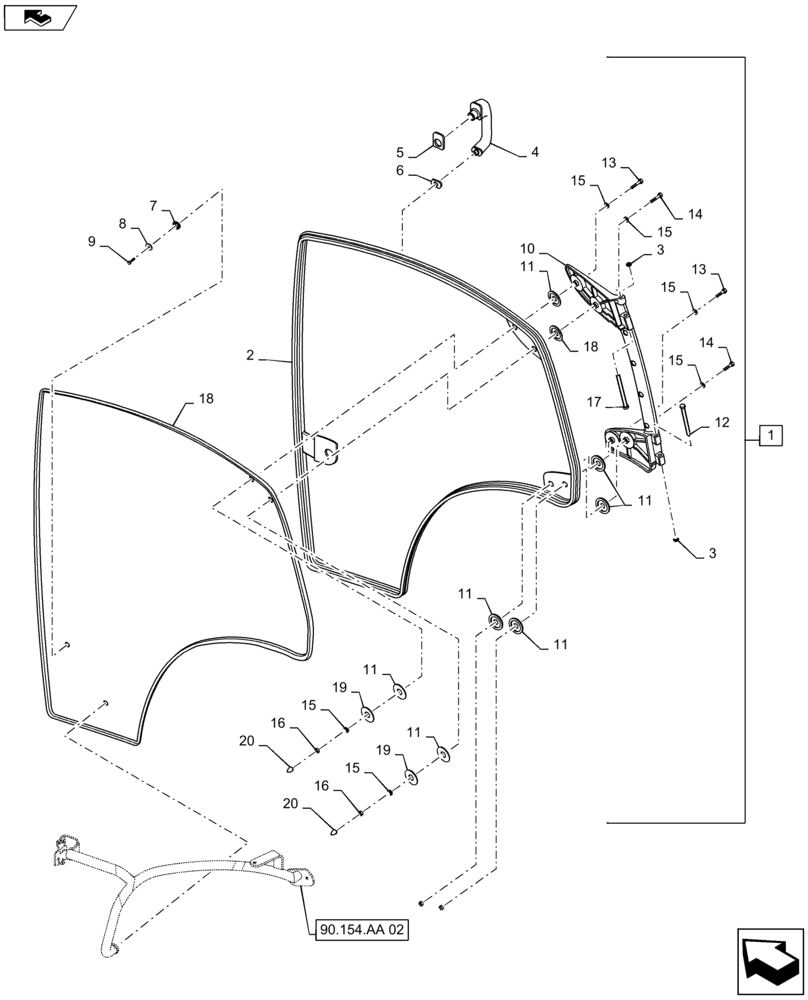

Запчасти Case IH MAXXUM 110 (90.154.AA[01]) - VAR - 331609, 331619, 332618 + STD - RH CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

RH Door, Order Components Below

1шт.

2

84275610

WEATHERSTRIP

1шт.

3

11087971

CIRCLIP,M8

2шт.

4

82029168

HANDLE

1шт.

5

82029170

GASKET,5-6.5mm Thk, 32mm ID

1шт.

6

82029171

GASKET,5mm Thk, 12mm ID

1шт.

7

82029142

GASKET,16mm ID x 26mm OD x 3mm Thk

1шт.

8

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

10

87301647

HINGE

1шт.

11

87528178

SEALING WASHER,20mm ID x 60mm OD x 5.5mm Thk

8шт.

12

82029160

PIN,9.8MM OD X 117.6MM L

Door Hinge, Lower

1шт.

13

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

14

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

16

43362

NUT,M8 x 1.25, Cl 10

4шт.

17

82029159

PIN,9.8mm OD x 129mm L

Door Hinge, Upper

1шт.

18

84280178

CAB GLASS ASSY

RH

1шт.

19

44995004

WASHER,9mm ID x 60mm OD x 3.4mm Thk

2шт.

20

5132136

CAP COVER,M8

2шт.
