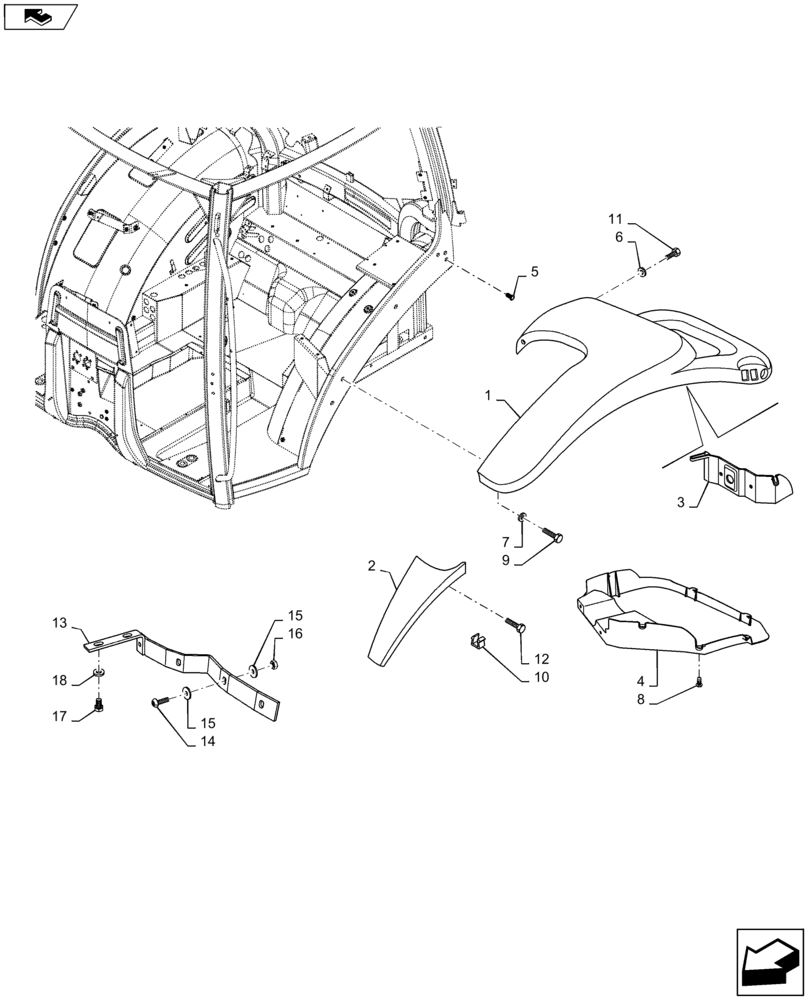

Запчасти Case IH MAXXUM 110 (90.116.AC[06]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87554853

REAR FENDER

LH

1шт.

1

87554854

REAR FENDER

RH

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

7

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

14шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

20шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

12

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

13

82037057

SUPPORT

LH

1шт.

13

82037055

SUPPORT

RH

1шт.

14

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

6шт.

15

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

16

15896211

NUT,M6, Cl 8

6шт.

17

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

7шт.

18

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
