Запчасти Case IH MAXXUM 110 (90.110.AH[02]) - PANEL INSTRUMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

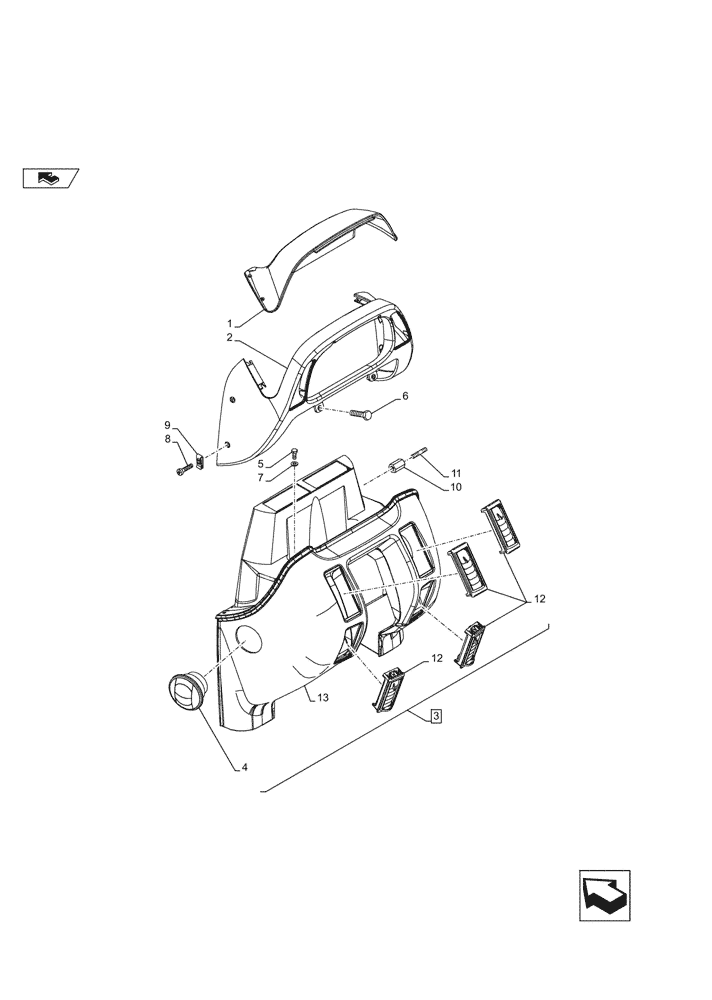

Схема запчастей Case IH MAXXUM 110 - (90.110.AH[02]) - PANEL INSTRUMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
9
12
1
8
11
4
3
5
12
2
13
7
home
6

Артикул

Название

Примечание

Количество

1

47056225

PANEL

1шт.

2

47056227

PANEL

1шт.

3

87735383

CONSOLE

Incl 4, 12, 13

8шт.

4

82027909

DIFFUSER

2шт.

5

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

4шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

84187821

SCREW,Torx, Pan HD, M4.2 x 1.4 x 19mm

4шт.

9

14372471

SPRING NUT

4шт.

10

47056231

SPACER,19mm x 26.5mm w/M6 Threads

2шт.

10

47056232

SPACER,19mm x 42mm w/M6 Threads

2шт.

11

11500321

BOLT,M6 x 18, 8.8, ZND

4шт.

12

87568777

VENT

4шт.

13

NSS

NOT SOLD SEPARAT

Console, Incl in 3

1шт.

Выбрано товаров: 14
