Запчасти Case IH MAXXUM 110 (90.108.AC[03]) - SAFETY OR FUNCTIONAL DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

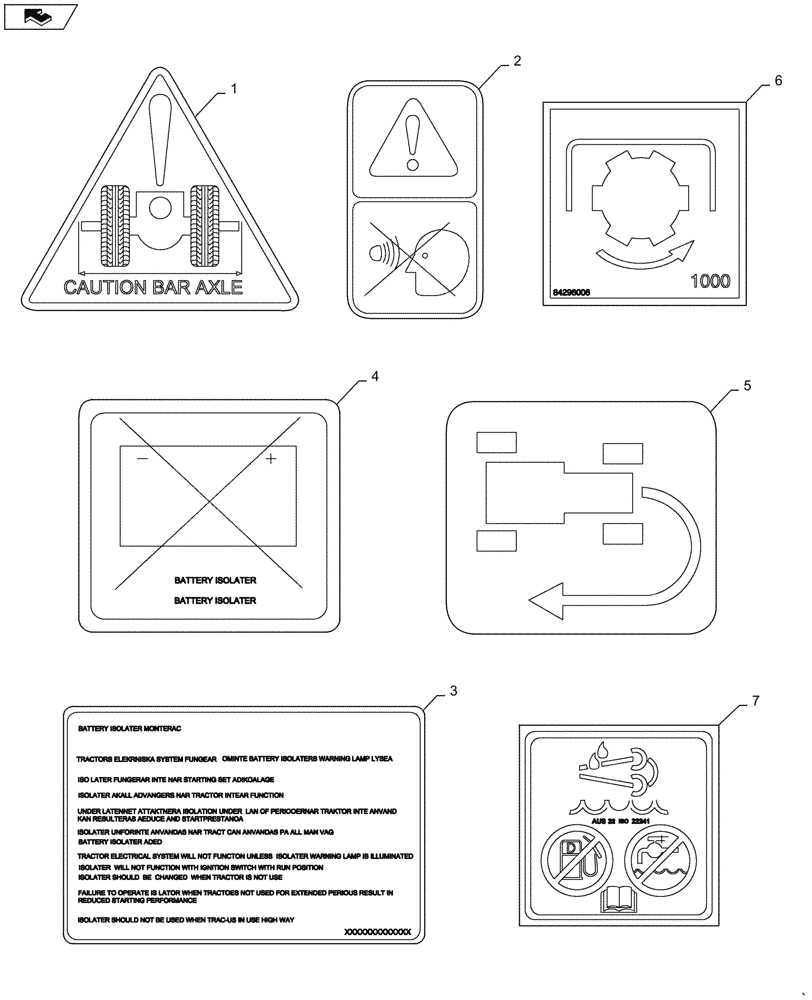

Схема запчастей Case IH MAXXUM 110 - (90.108.AC[03]) - SAFETY OR FUNCTIONAL DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
7
2
6
1
5
4

Артикул

Название

Примечание

Количество

1

82032066

DECAL

Bar Axle

1шт.

Heavy duty 98" Bar axles, 2 Hubs, VAR 330331, 331331

1шт.

2

84270897

DECAL

Warning

1шт.

Radar Europe, VAR 334704, Radar UK, VAR 332703, Radar Japan, VAR 333703

1шт.

3

82034481

DECAL

Battery Isolator-Text

1шт.

Electronic Battery Isolator, VAR 330798

1шт.

4

82034482

DECAL

Battery Isolator-Switch

1шт.

Electronic Battery Isolator, VAR 330798

1шт.

5

82030657

DECAL

Headland Turn

1шт.

Headland Turn System, VAR 334341, 335341, 743737

1шт.

6

84296006

DECAL

Warning F PTO Speed

1шт.

Integrated FHPL W/ PTO, 6 spline, VAR 333648, 334648, 335648, 743700

1шт.

Var. 332647 - 333647

1шт.

7

84284896

DECAL,DEF TANK identification label

1шт.

Выбрано товаров: 14
