Запчасти Case IH MAXXUM 110 (90.108.AA[06]) - CONTROL LOGOGRAM DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

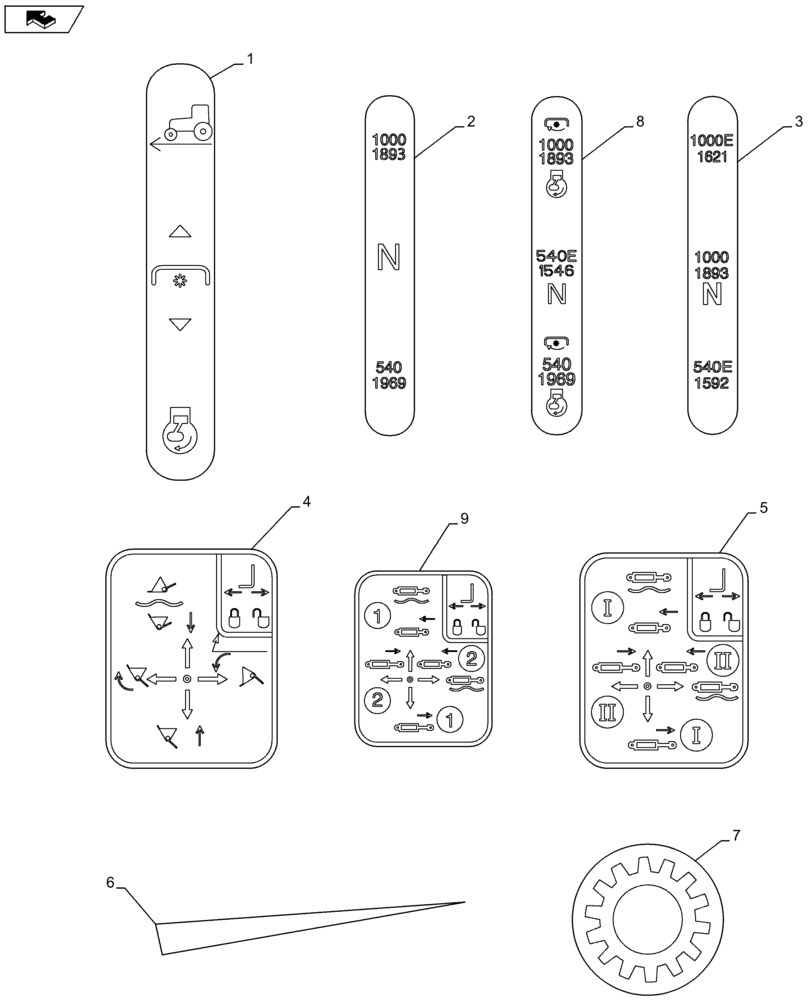

Схема запчастей Case IH MAXXUM 110 - (90.108.AA[06]) - CONTROL LOGOGRAM DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
9
4
7
home
1
2
8
5
6

Артикул

Название

Примечание

Количество

1

87556498

DECAL

Ground Speed

1шт.

Ground speed PTO, VAR 331802, 332802, 743679

1шт.

2

84568943

DECAL

PTO Control 2 Speed

1шт.

STD Equipment

1шт.

For Maxxum 110, 120, 130, 115, 125

1шт.

3

84304656

DECAL

PTO Control 3 Speed

1шт.

Valid with Var.332805 for Maxxum 125, 130, 140

1шт.

4

87487582

DECAL

Joystick Loader

1шт.

2/3 Slice MMV includes mech Joystick, VAR 332564, 332562, 334562, 743901, 332563, 332560, 334560, 743900

1шт.

5

87487581

DECAL

Joystick Control, Years: -17-JUL-12

1шт.

Mech joystick for Rear Remotes for 80/113 Pump and 2, 3 or 4 remotes, VAR 332782

1шт.

6

84154867

DECAL

Gearshift Cover

1шт.

Valid with Standard Equipment or Transmission 16x16 or 17x16 SPS, VAR 330283

1шт.

7

82032834

DECAL

Gearshift

1шт.

Transmission 16x16 or 17x16 SPS, VAR 330283

1шт.

8

84329140

DECAL

Control 3 Speed

1шт.

STD Equipment for Maxxum 140, VAR 330801 for Maxxum 110, 120, 130, 130, 115, 125

1шт.

9

87487583

DECAL

, Start Year: 18-JUL-12

1шт.

Mech joystick for Rear Remotes for 80/113 Pump and 2, 3 or 4 remotes, VAR 332782

1шт.

Выбрано товаров: 19
