(88.100.35[12]) - DIA KIT - 2 MECHANICAL MID MOUNTED VALVES FOR 113L/MIN CCLS - DISTRIBUTOR AND SUPPORT

Запчасти Case IH MAXXUM 110 (88.100.35[12]) - DIA KIT - 2 MECHANICAL MID MOUNTED VALVES FOR 113L/MIN CCLS - DISTRIBUTOR AND SUPPORT (88) - ACCESSORIES

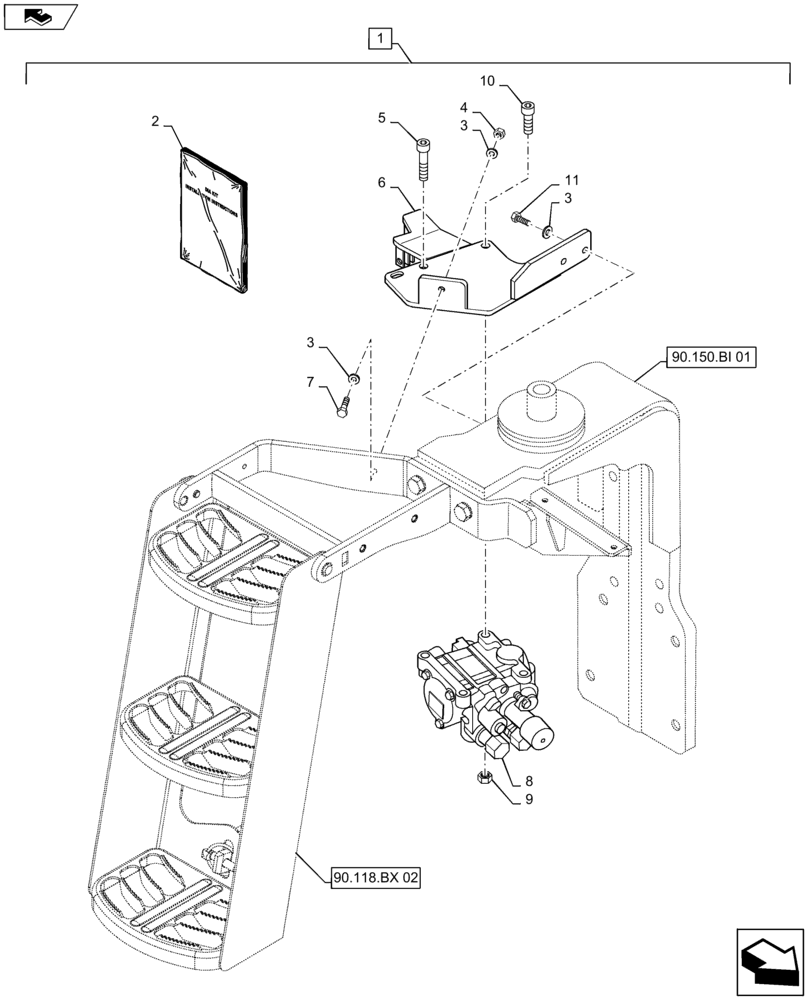

Схема запчастей Case IH MAXXUM 110 - (88.100.35[12]) - DIA KIT - 2 MECHANICAL MID MOUNTED VALVES FOR 113L/MIN CCLS - DISTRIBUTOR AND SUPPORT (88) - ACCESSORIES
4
home
8
90.150.bi 01
10
1
5
3
2
7
6
3
11
3
9
90.118.bx 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710919044

DIA KIT, TRACTOR

2 Mech. Slice Mid-Mount Valves for 113l/min CCLS Pump (NA), Incl 2 - 11 and Parts on Figures 88.100.35 13 and 14

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84215659

INSTRUCTION

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16100814

NUT,M8, Cl 8, DAC

4шт.

5

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

6

84476352

BRACKET

1шт.

7

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

47367745

VALVE SECTION

MMV

1шт.

8

47367745R

REMAN-HYD VALVE

Reman MMV Valve

1шт.

8

47367745C

CORE-VALVE HYD

Core Return Number

1шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

10

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

11

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.
