Запчасти Case IH MAXXUM 110 (88.100.35[09]) - DIA KIT - 2 HYDRAULIC FRONT COUPLERS RH FOR INTEGRATED FRONT HPL (88) - ACCESSORIES

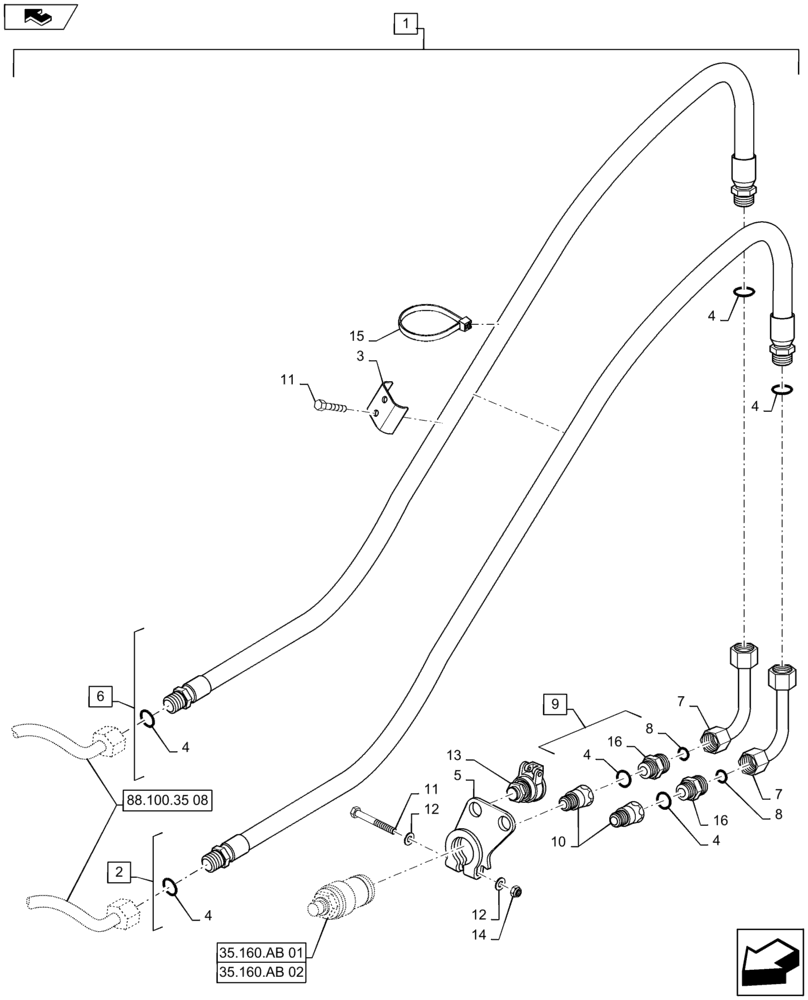

Схема запчастей Case IH MAXXUM 110 - (88.100.35[09]) - DIA KIT - 2 HYDRAULIC FRONT COUPLERS RH FOR INTEGRATED FRONT HPL (88) - ACCESSORIES
11
12
11
13
3
4
4
4
9
1
8
10
5
35.160.ab 02
7
16
16
2
8
12
4
4
15
4
6
35.160.ab 01
14
7
home
88.100.35 08

Артикул

Название

Примечание

Количество

1

718344034

DIA KIT, TRACTOR

2 RH Side Front Mounted Hydraulic Couplers for Integrated Front HPL 4 Cyl, Incl 2 - 16

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figure 88.100.35 08

1шт.

2

47057083

HOSE,12.70 mm ID x 3700.00 mm, SAE J516

RH, Incl 4

1шт.

3

47057073

CLAMP

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

5

47057026

RETAINING PLATE

1шт.

6

47057082

HOSE,12.70 mm ID x 3600.00 mm, SAE J516

RH, Incl 4

1шт.

7

47057034

TUBE

2шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

5185524

HYD CONNECTOR

Incl 4, 8, 16

2шт.

10

83972881

COUPLING

2шт.

11

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

3шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

13

47057077

SOCKET

2шт.

14

86528579

NUT,M8 x 1.25

1шт.

15

14560287

CABLE TIE,207.00mm L

3шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

Выбрано товаров: 18
