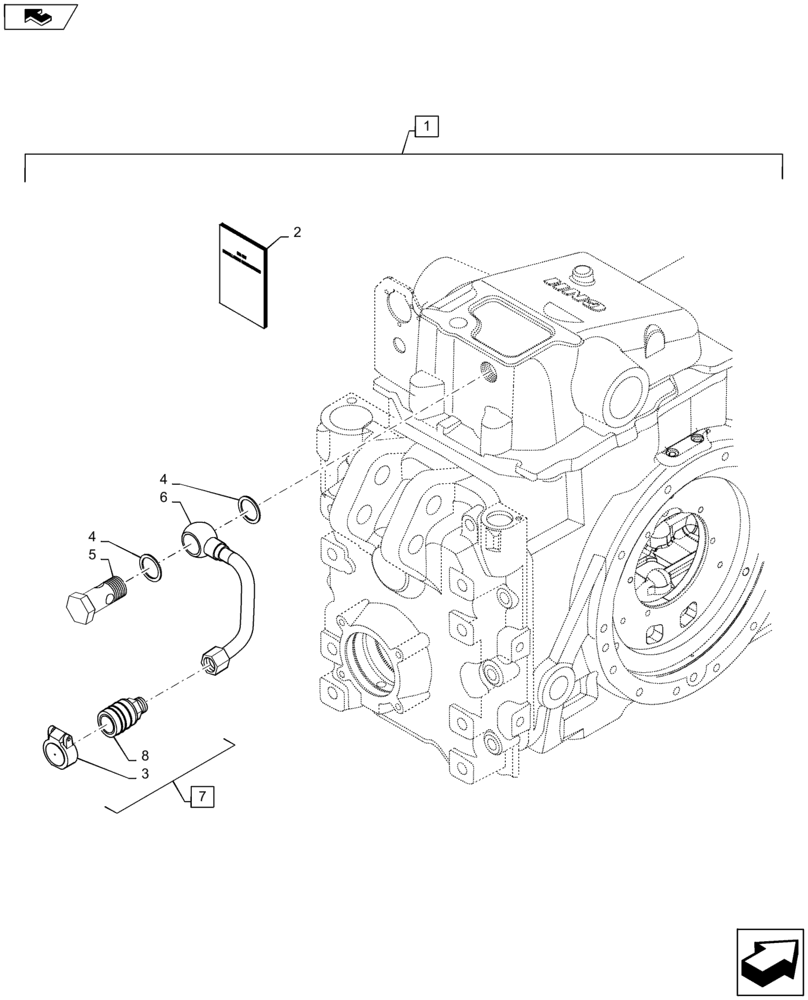

Запчасти Case IH MAXXUM 110 (88.100.35[06]) - DIA KIT - LOW PRESSURE HYDRAULIC RETURN PORT FOR EDC (88) - ACCESSORIES

1

719979024

DIA KIT, TRACTOR

Hydraulic Free Flow Return Pipe, Incl 2 - 8

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84241328

INSTRUCTION

1шт.

3

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

1шт.

4

10243860

SEAL,28.4mm ID x 36mm OD x 2mm Thk

2шт.

5

87305112

BANJO BOLT,G-3/4" x 50mm

1шт.

6

84408288

PIPE

1шт.

7

87301571

QUICK MALE COUPLING,M22 x 1.5

Incl 3, 8

1шт.

8

NSS

NOT SOLD SEPARAT

Coupling, Incl in 7

1шт.
