(55.512.AH) - VAR - 330827, 331827, 743710, 330825, 338026 + STD - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS - SWITCHES

Запчасти Case IH MAXXUM 110 (55.512.AH) - VAR - 330827, 331827, 743710, 330825, 338026 + STD - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS - SWITCHES (55) - ELECTRICAL SYSTEMS

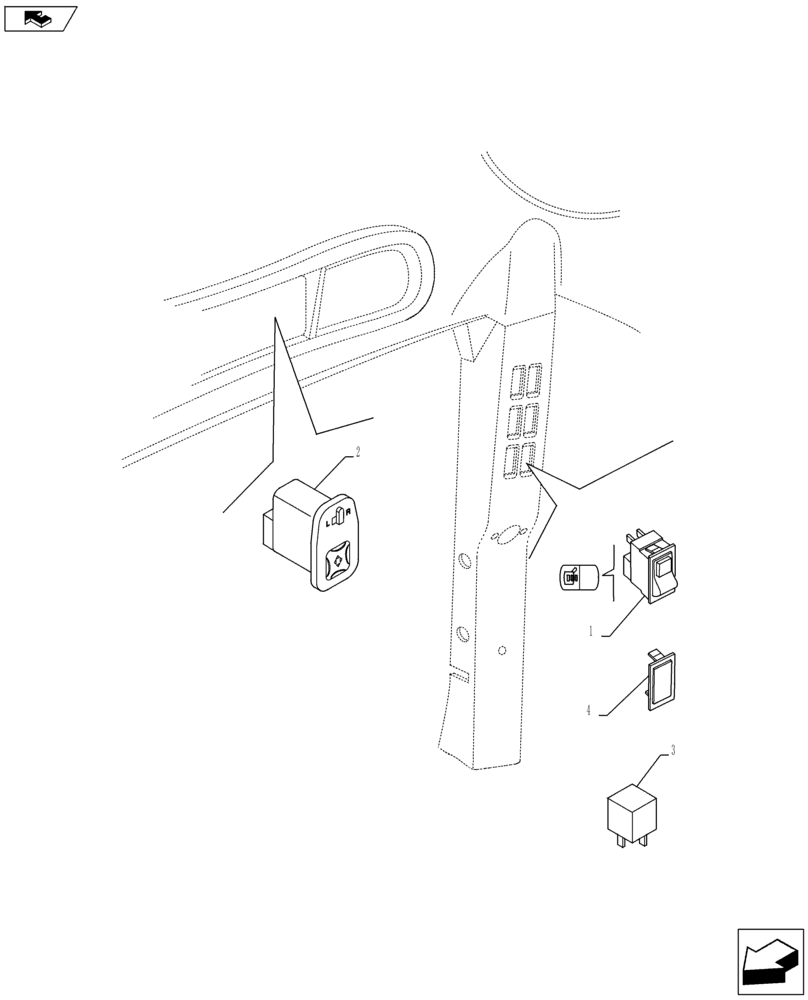

Схема запчастей Case IH MAXXUM 110 - (55.512.AH) - VAR - 330827, 331827, 743710, 330825, 338026 + STD - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR VIEW MIRRORS - SWITCHES (55) - ELECTRICAL SYSTEMS
4
1
2
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87573650

SWITCH ASSY

Heated Mirrors, VAR 330827, 331827, 743710

1шт.

2

82037339

SWITCH ASSY

Electric Mirrors, VAR 330827, 331827, 743710

1шт.

3

82038934

RELAY

Rear View Mirror, VAR 330827, 331827, 743710

1шт.

4

82022763

PLUG

STD or VAR 330825, 330826

1шт.

Выбрано товаров: 4
