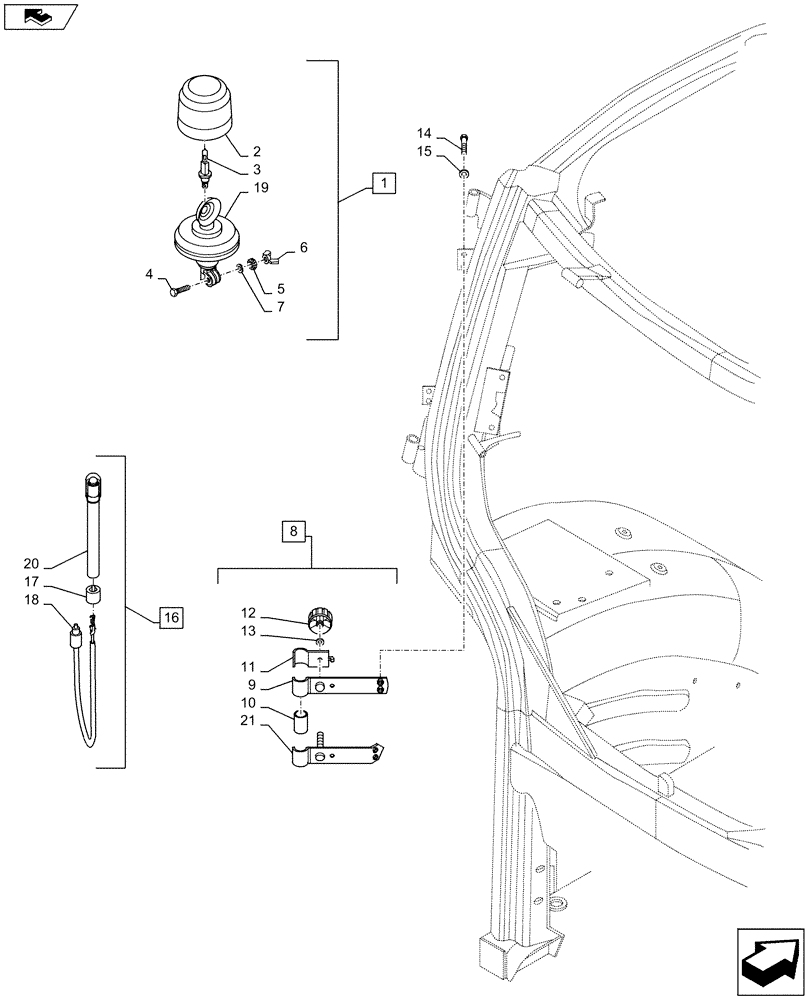

Запчасти Case IH MAXXUM 110 (55.404.AC) - VAR - 331916, 333916 - ROTARY BEACON & COMPONENTS (55) - ELECTRICAL SYSTEMS

1

82018390

BEACON,12V, 55W

Rotary, Incl 2 - 7, 19

1шт.

2

82020775

LENS

1шт.

3

86616248

BULB,H1, 12V, 55W

H1 12V, 55W

1шт.

4

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

1шт.

5

10615779

LOCK WASHER,Ext Tooth, M10

1шт.

6

10101901

WING NUT

M10

1шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

8

87520385

BRACKET

Incl 9 - 13, Serial Range: -C7191

1шт.

8

84537532

BRACKET

Incl 10-13, 21, Start Serial: D7191

1шт.

9

82028964

BRACKET

1шт.

10

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

1шт.

11

82028975

BRACKET

1шт.

12

82016257

KNOB

1шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

16

87621041

SUPPORT

Incl 17, 18, 20

1шт.

17

82027653

SUPPORT

1шт.

18

82027731

WIRE HARNESS

Rotary Beacon

1шт.

19

NSS

NOT SOLD SEPARAT

Base, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Tube, Incl in 16

1шт.

21

84537534

BRACKET

1шт.
