Запчасти Case IH MAXXUM 110 (55.100.AX[04]) - VAR - 331836, 333836, 336835, 338835, 743744, 330283, 330658, 331658 - TRANSMISSION HARNESS WITH HYDRAULIC PUMP 113L/MIN CCLS FOR SPS WITH MECHANICAL REAR REMOTES (55) - ELECTRICAL SYSTEMS

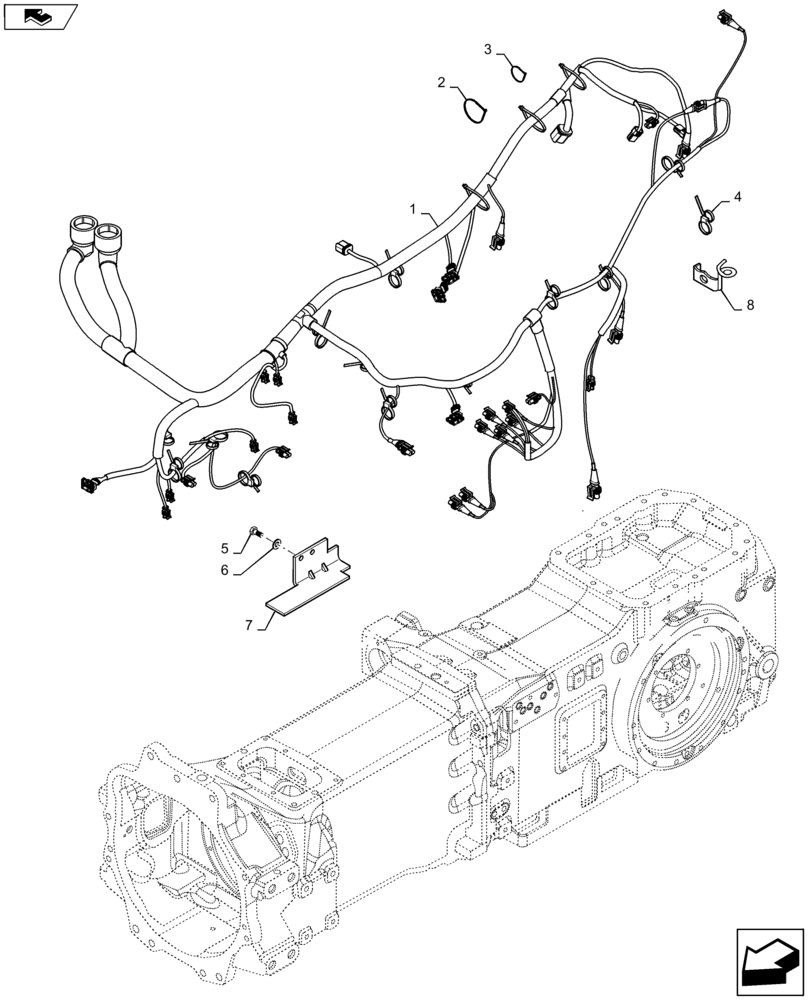

Схема запчастей Case IH MAXXUM 110 - (55.100.AX[04]) - VAR - 331836, 333836, 336835, 338835, 743744, 330283, 330658, 331658 - TRANSMISSION HARNESS WITH HYDRAULIC PUMP 113L/MIN CCLS FOR SPS WITH MECHANICAL REAR REMOTES (55) - ELECTRICAL SYSTEMS
home
8
5
1
7
3
6
2
4

Артикул

Название

Примечание

Количество

1

84472281

WIRE HARNESS

Transmission, w/ Cl.3 and Cl.4 Front Axle for 30/40KPH, VAR 331836, 333836, 336835, 743744

1шт.

1

84216520

WIRE HARNESS

Transmission, w/ Cl.4 Front Axle for 40E / 50KPH, VAR 338835, 743744

1шт.

2

14560287

CABLE TIE,207.00mm L

With Cl.3 and Cl.4 Front Axle for 30/40KPH, VAR 331836, 333836, 336835, 743744

1шт.

3

14560187

COLLAR,199mm L

With Cl.4 Front Axle for 40E / 50KPH, VAR 338835, 743744

1шт.

4

82013031

CABLE TIE,193mm L

w/ Cl.3 and Cl.4 Front Axle for 30/40KPH, VAR 331836, 333836, 336835, 743744

8шт.

5

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

VAR 330283

2шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

VAR 330283

2шт.

7

82033141

SHIELD

VAR 330283

1шт.

8

87574198

GUIDE

With Cab Suspensions, VAR 330658, 331658

1шт.

Выбрано товаров: 9
