(55.100.AX[03]) - VAR - 332836, 743744 + STD - FRONT HARNESS WITH HYDRAULIC PUMP 80 L/MIN FD FOR SPS

Запчасти Case IH MAXXUM 110 (55.100.AX[03]) - VAR - 332836, 743744 + STD - FRONT HARNESS WITH HYDRAULIC PUMP 80 L/MIN FD FOR SPS (55) - ELECTRICAL SYSTEMS

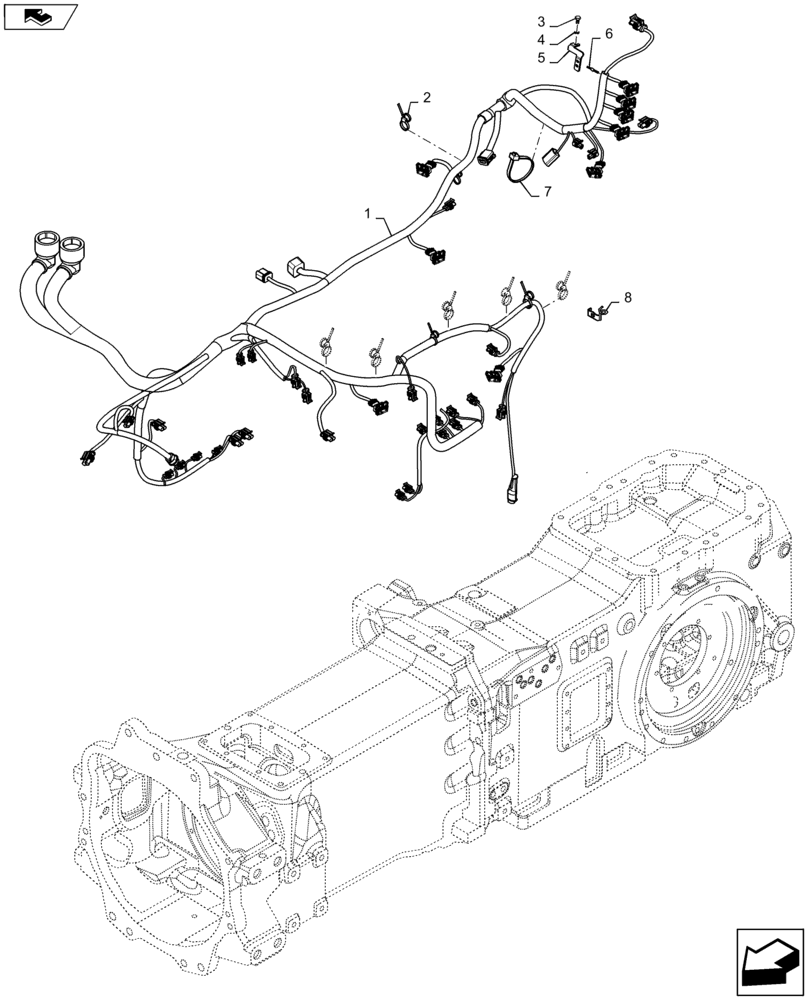

Схема запчастей Case IH MAXXUM 110 - (55.100.AX[03]) - VAR - 332836, 743744 + STD - FRONT HARNESS WITH HYDRAULIC PUMP 80 L/MIN FD FOR SPS (55) - ELECTRICAL SYSTEMS
home
8
3
1
2
7
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84473892

WIRE HARNESS

Transmission Harness

1шт.

2

82013031

CABLE TIE,193mm L

8шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

5

NS

NOT SERVICED

Bracket

1шт.

6

14560187

COLLAR,199mm L

1шт.

7

14560287

CABLE TIE,207.00mm L

1шт.

8

87574198

GUIDE

1шт.

Выбрано товаров: 8
