(55.023.AA[02]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - COVER FOR REVERSER - SENSOR

Запчасти Case IH MAXXUM 110 (55.023.AA[02]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - COVER FOR REVERSER - SENSOR (55) - ELECTRICAL SYSTEMS

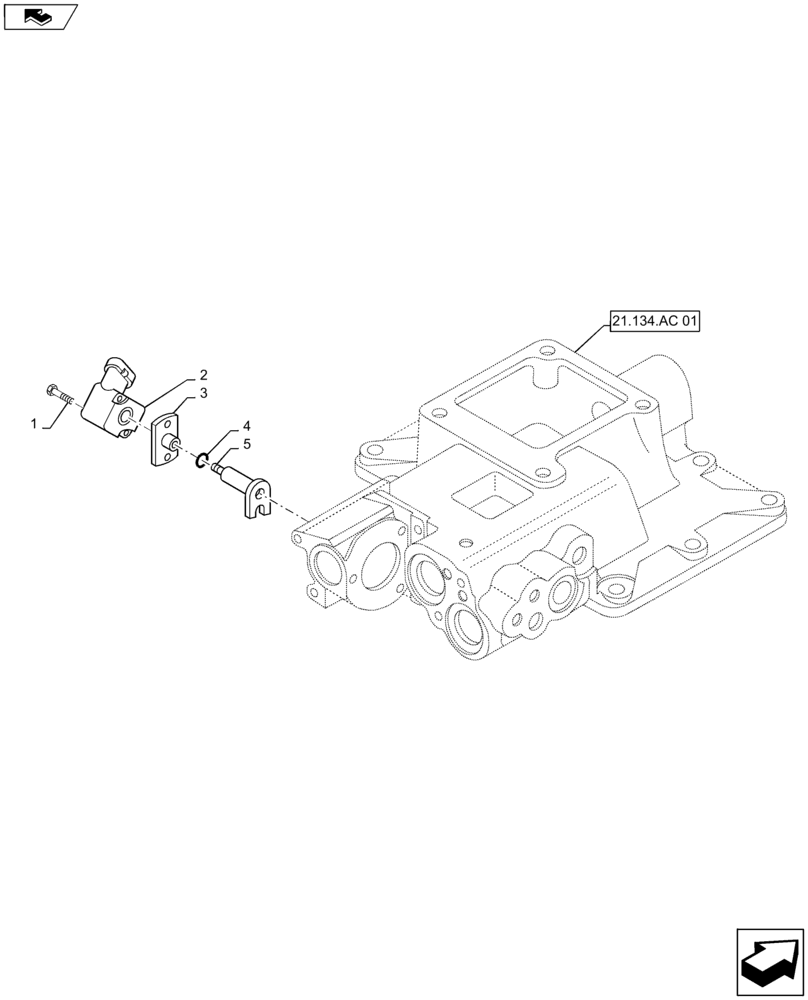

Схема запчастей Case IH MAXXUM 110 - (55.023.AA[02]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - COVER FOR REVERSER - SENSOR (55) - ELECTRICAL SYSTEMS
2
3
21.134.ac 01
home
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87673581

SCREW,Phil Pan Hd, M5 x 40mm, Cl 8.8, w/ Chem Lock

2шт.

2

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rail Shuttle Position

1шт.

3

5178541

PLATE

1шт.

4

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

5

5178335

SHAFT,12mm OD x 48.5mm L

1шт.

Выбрано товаров: 5
