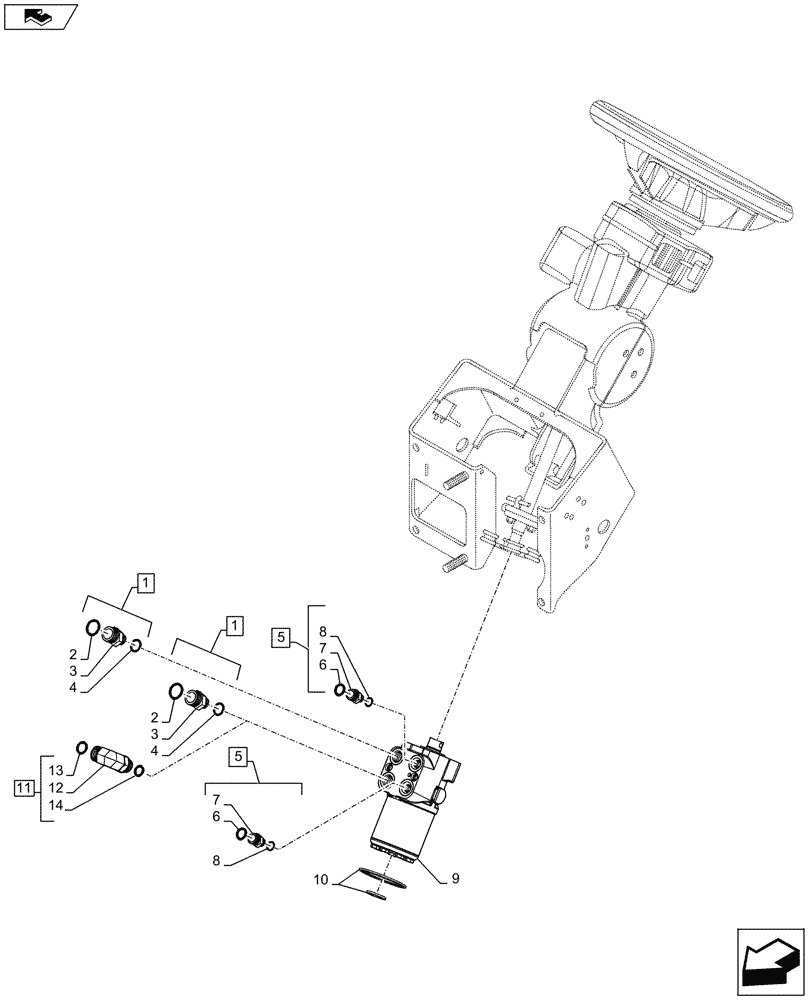

Запчасти Case IH MAXXUM 110 (41.200.AF[02]) - HYDROSTATIC STEERING WITH CL.4 FRONT AXLE - STEERING MOTOR (41) - STEERING

1

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 2 - 4

2шт.

Qty 1, D7466 After Date (17 March 2013 Basildon Prod. / 19 December 2012 St. Valentin Prod.)

1шт.

2

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

4

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

5

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Incl 6 - 8

2шт.

6

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

8

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

9

84198243

HYDRAULIC STEERING

1шт.

9

84198243R

REMAN-STEERING VALVE

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All EP EFFICIENT POWER TRACTOR - TIER 4 (2/12-)

1шт.

9

84198243C

CORE-STEERING VALVE

Return Number

1шт.

10

87363996

KIT

Seal and Gasket

1шт.

11

5194728

90 ELBOW

Incl 12 - 14, Start Serial: D7466

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
