Запчасти Case IH MAXXUM 110 (41.200.AE[07]) - VAR - 331658, 331659 + STD - FAST STEERING WITH 113L/MIN CCLS PUMP - STEERING MOTOR PIPES (41) - STEERING

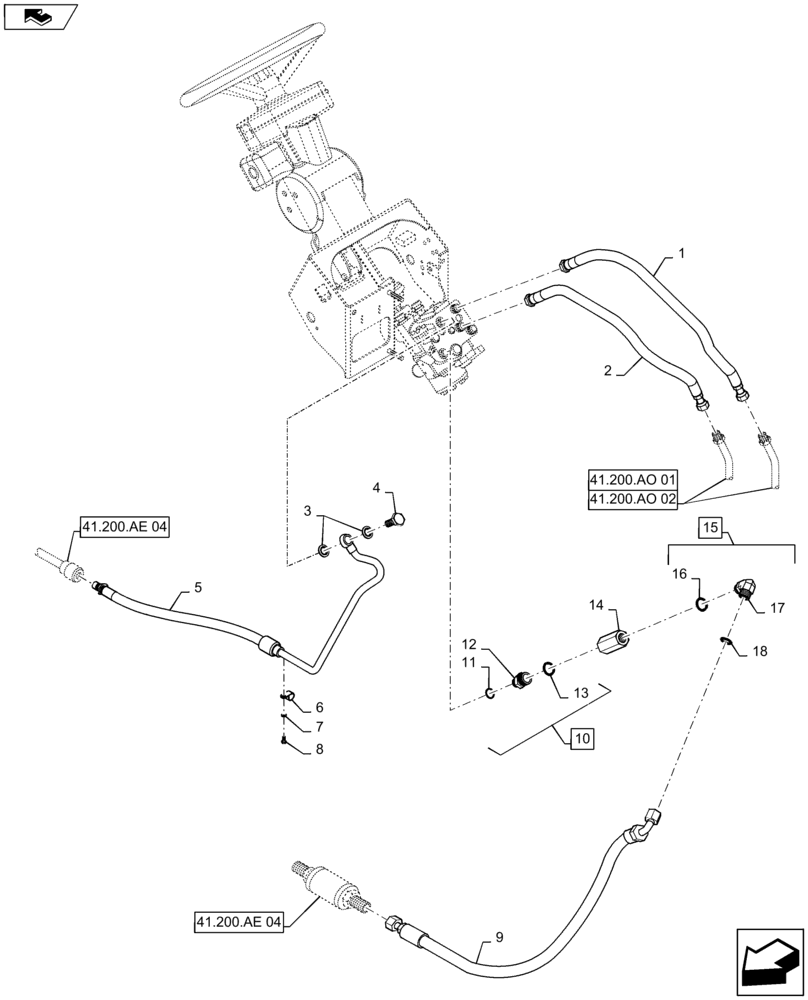

Схема запчастей Case IH MAXXUM 110 - (41.200.AE[07]) - VAR - 331658, 331659 + STD - FAST STEERING WITH 113L/MIN CCLS PUMP - STEERING MOTOR PIPES (41) - STEERING
41.200.ae 04
13
1
18
home
41.200.ao 01
9
8
10
7
41.200.ae 04
6
15
5
2
4
12
41.200.ao 02
16
3
17
11
14

Артикул

Название

Примечание

Количество

1

84499293

FLEXIBLE HOSE

Steering, Left

1шт.

2

84499269

FLEXIBLE HOSE

Steering, Right

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

4

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

5

84478092

TUBE

Return from Steering

1шт.

6

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

9

84550205

HOSE ASSY.

Supply Steering

1шт.

10

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

Incl 11 - 13

1шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

13

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

87350633

FILTER

1шт.

15

5194728

90 ELBOW

Incl 16 - 18

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

18

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
