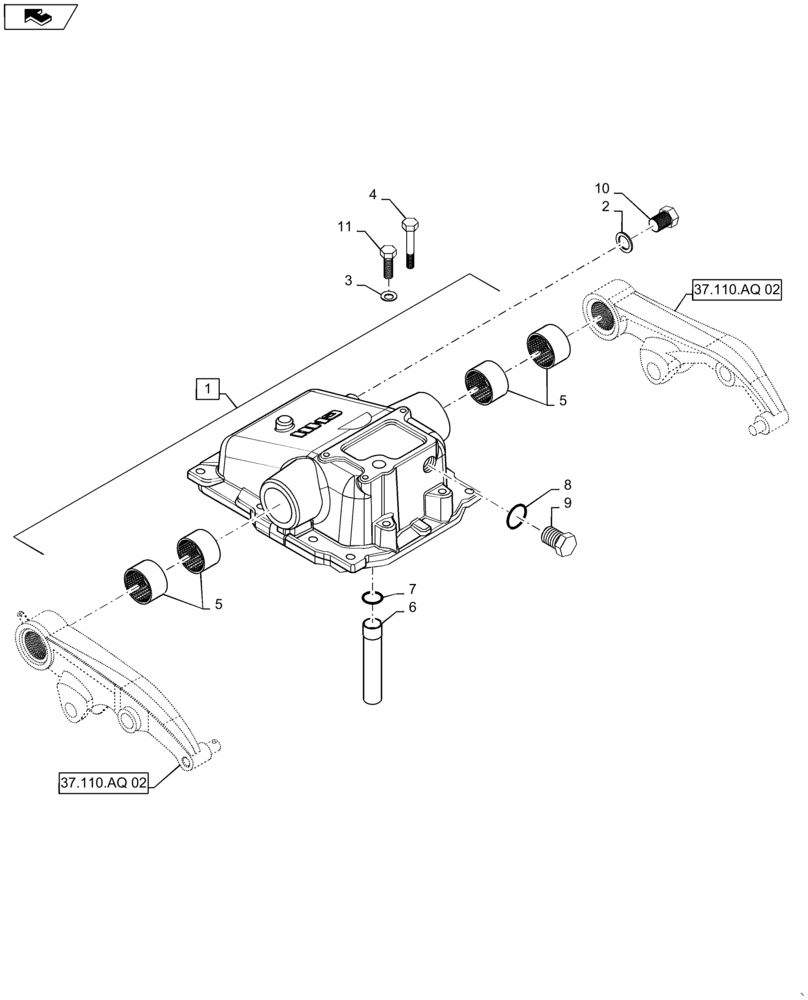

Запчасти Case IH MAXXUM 110 (37.110.AP) - VAR - 330909, 331909, 743811, 331908 + STD - EDC WITH TWO EXTERNAL CYLINDERS - LIFTER, HOUSING AND COVERS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5197898

COVER

Incl 5, 6, 8, 9

1шт.

2

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

1шт.

3

11190874

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD x 3mm Thk

1шт.

4

15541621

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

3шт.

5

5180491

BUSHING,65.1mm ID x 70.03mm OD x 45mm L

4шт.

6

5191699

TUBE

Drain, Remotes

1шт.

7

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

83957506

PLUG,3/4"

1шт.

10

10275011

PLUG,M22 x 1.5 x 13

1шт.

11

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

11

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

6шт.

11

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.
