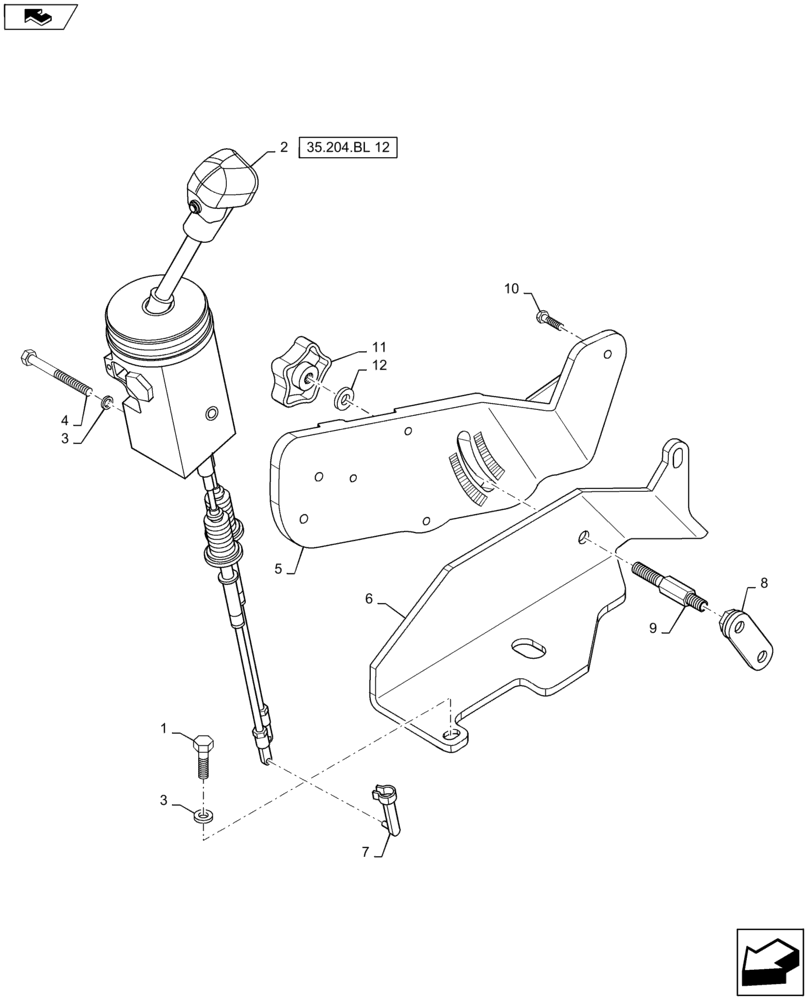

Запчасти Case IH MAXXUM 110 (35.204.BL[11]) - VAR - 332563, 332560, 334560, 743900 - 2 MECHANICAL MID MOUNTED VALVES - JOYSTICK (35) - HYDRAULIC SYSTEMS

1

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2

82038997

JOYSTICK

1шт.

2

82038997R

REMAN-JOYSTICK

Reman for New PN 82038997

1шт.

2

82038997C

CORE-JOYSTICK

Return Number

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

16044924

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

5

82037484

SUPPORT

1шт.

6

82026112

BRACKET

1шт.

7

82022510

PIN,4.72mm OD x 15.5mm L

2шт.

8

82035556

BRACKET

1шт.

9

82032760

SPACER,7/16" - 20

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

82032632

KNOB

1шт.

12

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.
