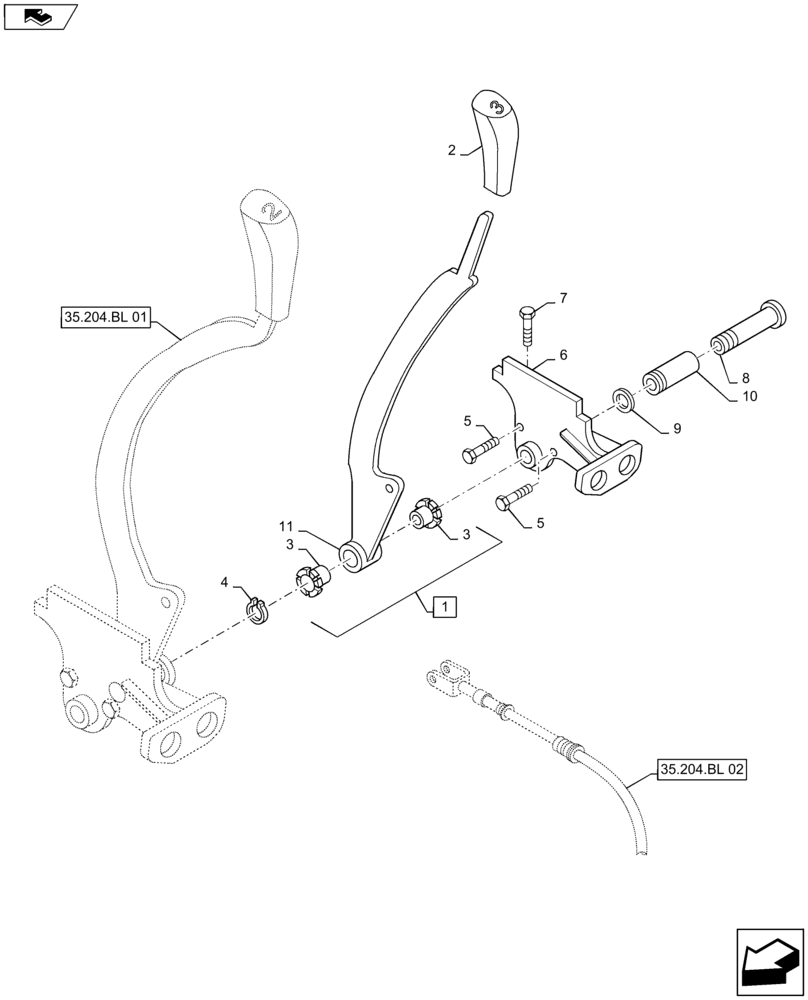

Запчасти Case IH MAXXUM 110 (35.204.BL[03]) - VAR - 331844, 333844, 335844, 743741 - 3 MECHANICAL REAR REMOTE CONTROL VALVE - FRAME AND CONTROL LEVERS (35) - HYDRAULIC SYSTEMS

1

82036839

LEVER

Incl 3, 11

1шт.

2

82037912

KNOB

1шт.

3

82035633

BUSHING

2шт.

4

11088171

SNAP RING,M11

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

11

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.
