(35.124.AE) - VAR - 330921, 331921, 743696, 332923 - CAT 2/3 QUICK ATTACH LINKS FOR HYDRAULIC LINKAGE ADJUSTMENT - PIPES

Запчасти Case IH MAXXUM 110 (35.124.AE) - VAR - 330921, 331921, 743696, 332923 - CAT 2/3 QUICK ATTACH LINKS FOR HYDRAULIC LINKAGE ADJUSTMENT - PIPES (35) - HYDRAULIC SYSTEMS

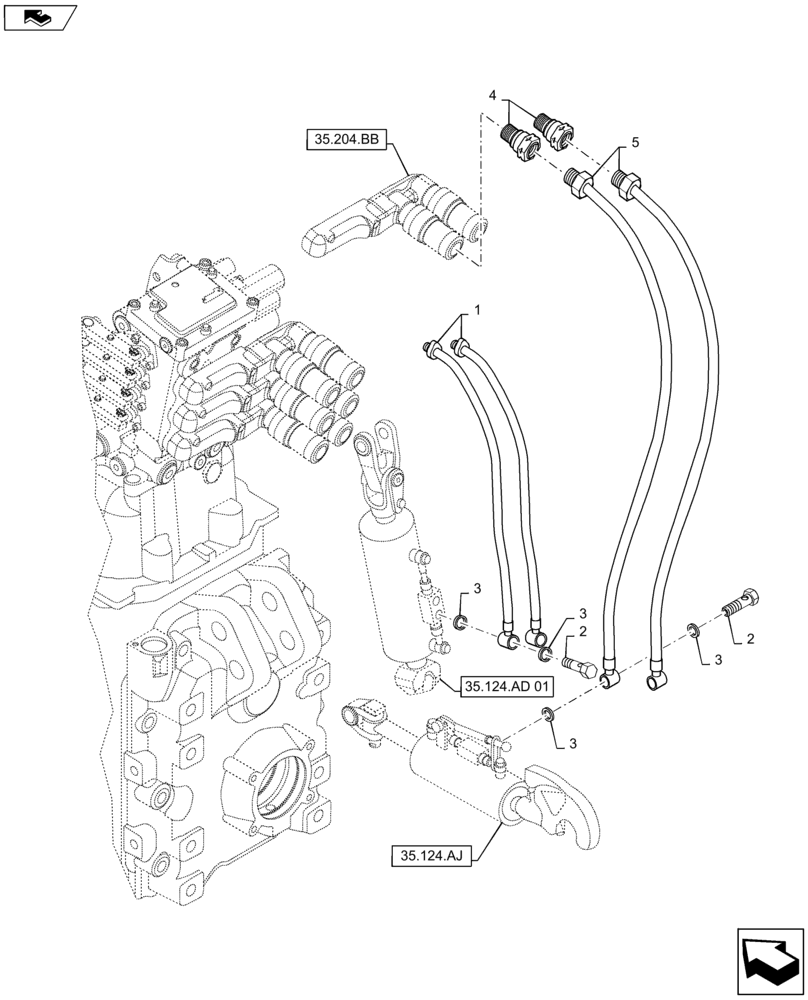

Схема запчастей Case IH MAXXUM 110 - (35.124.AE) - VAR - 330921, 331921, 743696, 332923 - CAT 2/3 QUICK ATTACH LINKS FOR HYDRAULIC LINKAGE ADJUSTMENT - PIPES (35) - HYDRAULIC SYSTEMS
5
4
3
35.124.ad 01
35.204.bb
2
35.124.aj
2
home
1
3
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47135528

HOSE,8mm ID x 840mm L, SAE 100R2

2шт.

2

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

4шт.

3

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

8шт.

4

5101741

QUICK MALE COUPLING

2шт.

5

47135530

HOSE,950mm L

2шт.

Выбрано товаров: 5
