(35.116.AH) - VAR - 330909, 331909, 743811, 331908 + STD - HYDRAULIC POWER LIFT - CYLINDERS (80MM/90MM)

Запчасти Case IH MAXXUM 110 (35.116.AH) - VAR - 330909, 331909, 743811, 331908 + STD - HYDRAULIC POWER LIFT - CYLINDERS (80MM/90MM) (35) - HYDRAULIC SYSTEMS

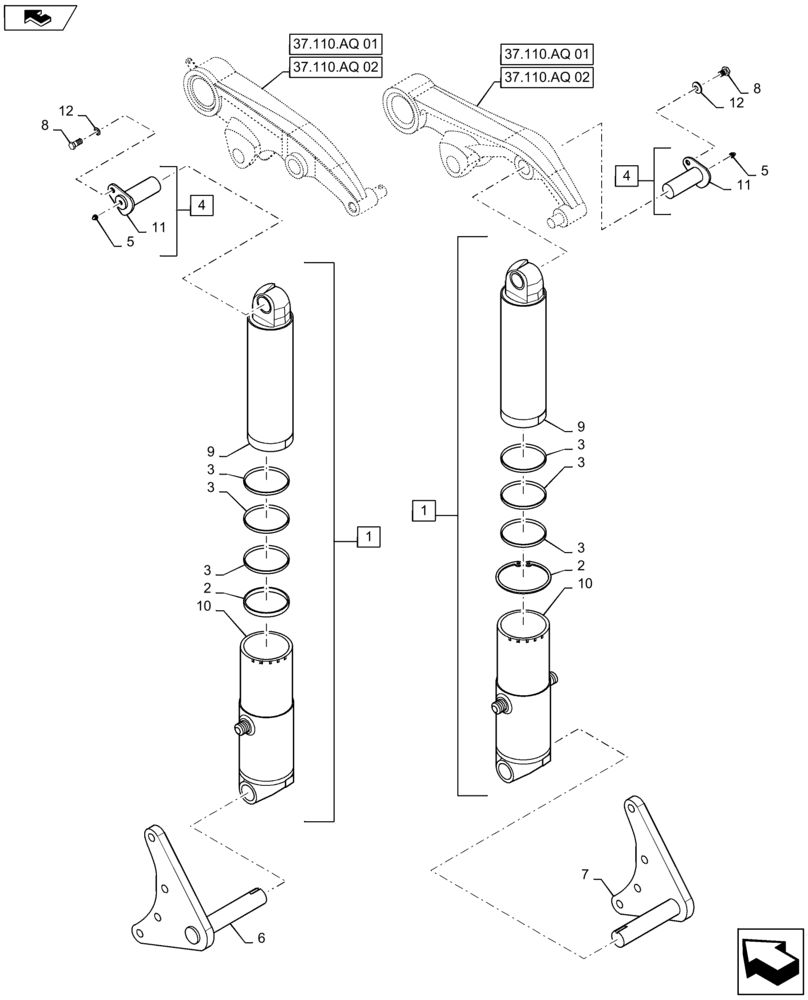

Схема запчастей Case IH MAXXUM 110 - (35.116.AH) - VAR - 330909, 331909, 743811, 331908 + STD - HYDRAULIC POWER LIFT - CYLINDERS (80MM/90MM) (35) - HYDRAULIC SYSTEMS
home
10
3
5
7
12
1
3
4
37.110.aq 01
2
10
4
5
3
12
6
8
9
3
11
1
3
37.110.aq 01
9
37.110.aq 02
2
3
11
37.110.aq 02
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87306505

HYDRAULIC CYLINDER,80mm Rod, 177mm Stroke

80mm, Incl 2, 3, 9, 10. VAR 331908 and STD

2шт.

1

87306504

HYDRAULIC CYLINDER,90mm Rod, 177mm Stroke

90mm, Incl 2, 3, 9, 10. VAR 330909, 331909, 743811

2шт.

2

87663330

RING

VAR 331908 and STD

2шт.

2

87309025

CIRCLIP

VAR 330909, 331909, 743811

1шт.

3

47134495

SEAL KIT

VAR 331908 and STD

1шт.

3

47134493

SEAL KIT

VAR 330909, 331909, 743811

1шт.

4

5190967

PIN,34.7mm OD x 96mm L

Incl 5, 11

2шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5191004

SUPPORT

LH

1шт.

7

5191006

SUPPORT

RH

1шт.

8

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

9

NSS

NOT SOLD SEPARAT

Barrel, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Barrel, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

2шт.

12

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

2шт.
