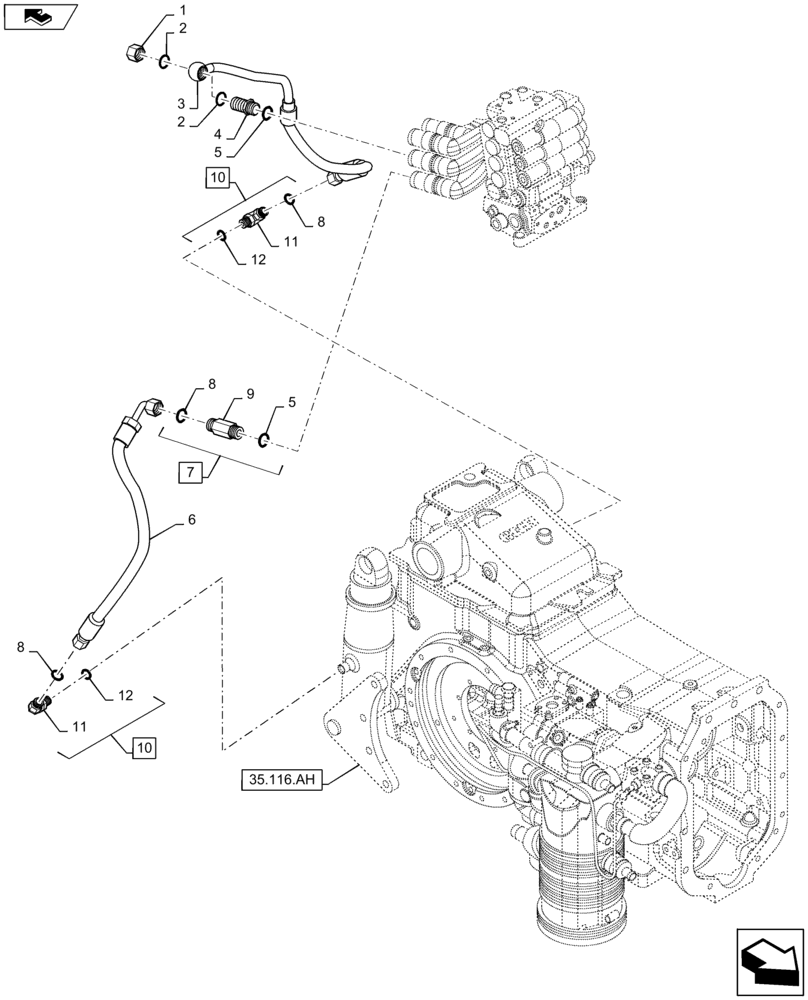

Запчасти Case IH MAXXUM 110 (35.116.AD) - VAR - 331836, 333836, 336835, 338835, 743744 - HYDRAULIC PUMP 113 L/MIN CCLS FOR SPS - PIPES TO LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

2

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

3

47133648

HOSE,10mm ID x 425mm L

Left Cylinder

1шт.

4

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

6

47133647

HOSE,13/16"-16 ID x 600mm L

Right Cylinder

1шт.

7

87519164

HYD CONNECTOR

Incl 5, 8, 9

1шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

2шт.
