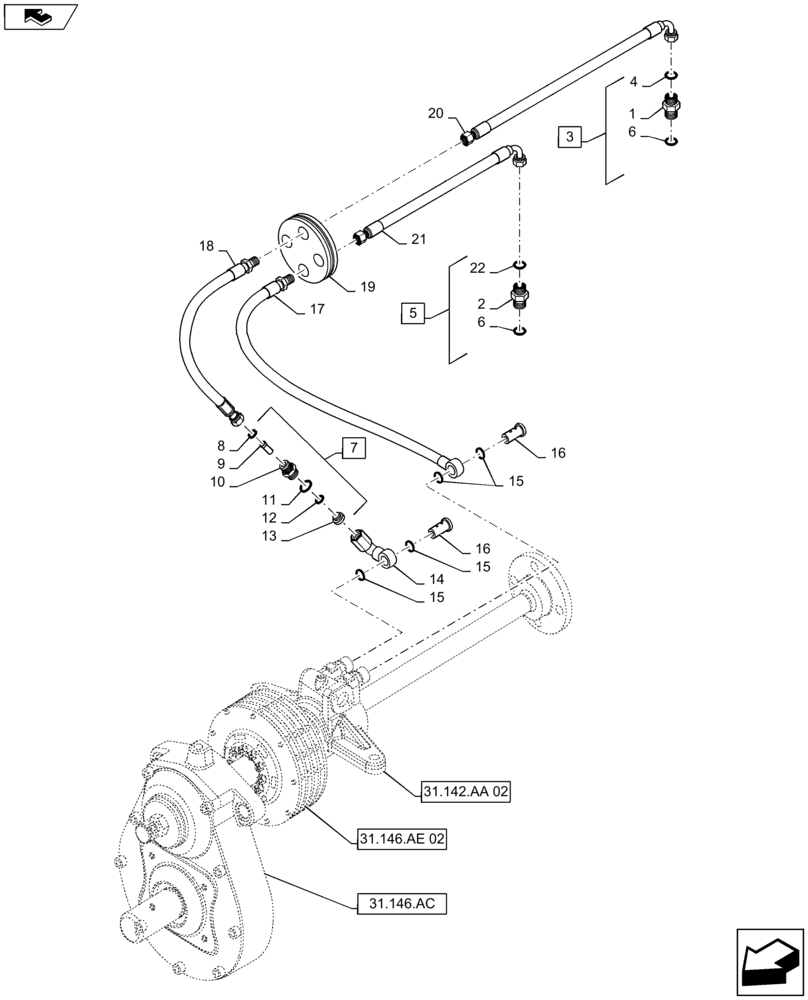

Запчасти Case IH MAXXUM 110 (31.142.AF[01]) - VAR - 333648, 334648, 335648, 743700 - INTEGRATED FRONT HPL WITH PTO - PIPES (31) - IMPLEMENT POWER TAKE OFF

1

NSS

NOT SOLD SEPARAT

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

7

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

47126655

FILTER STRAINER

1шт.

10

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

13

47127332

ORIFICE,M10 x 1

1шт.

14

47057815

TUBE

1шт.

15

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

4шт.

16

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

17

87622442

FLEXIBLE HOSE,6.40 mm ID x 700.00 mm, SAE 100R2

1шт.

18

87622443

FLEXIBLE HOSE,780.00 mm

1шт.

19

87302214

SUPPORT

1шт.

20

47057667

FLEXIBLE HOSE,6.4mm ID x 2000mm L, SAE 100R2

1шт.

21

47057668

HYDRAULIC HOSE

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
