Запчасти Case IH MAXXUM 110 (31.114.AH[01]) - 2 SPEED REAR PTO - PTO CASE AND INTERNAL COVER (31) - IMPLEMENT POWER TAKE OFF

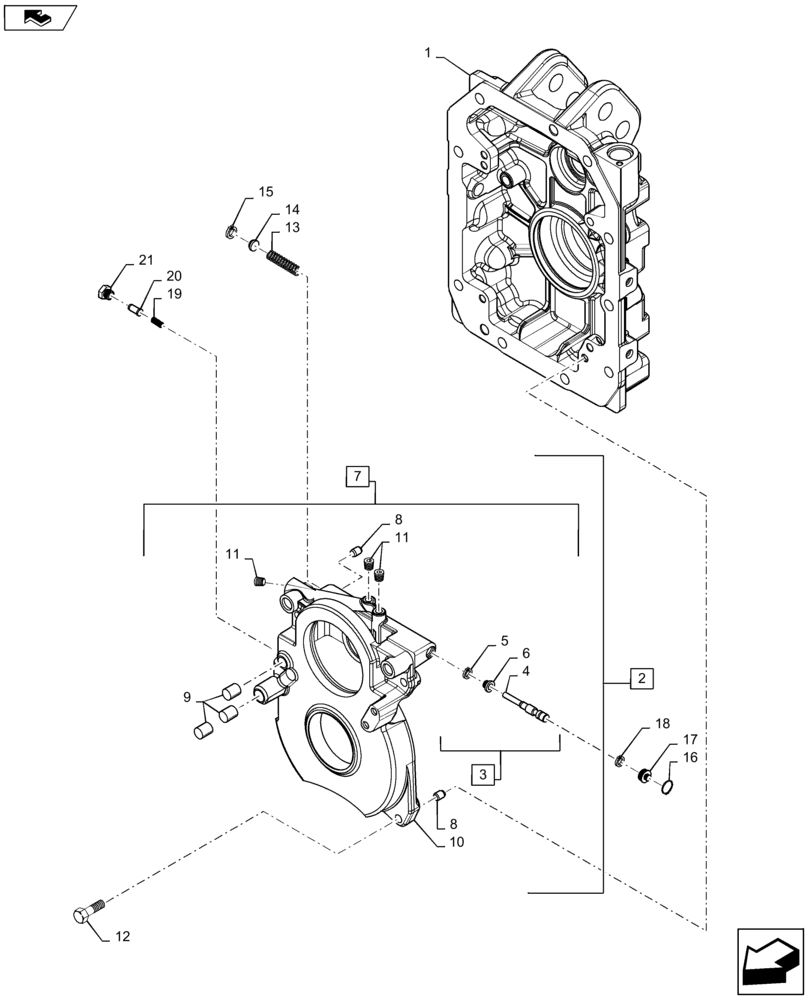

Схема запчастей Case IH MAXXUM 110 - (31.114.AH[01]) - 2 SPEED REAR PTO - PTO CASE AND INTERNAL COVER (31) - IMPLEMENT POWER TAKE OFF
6
9
8
13
14
11
5
18
19
1
7
20
21
8
12
4
home
17
3
11
16
15
10
2

Артикул

Название

Примечание

Количество

1

47131252

HOUSING

1шт.

2

87673377

COVER

Incl 3 - 11

1шт.

3

47128616

VALVE

Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

5

13397370

SNAP RING,M8, Int

1шт.

6

47128538

SPACER

1шт.

7

87580869

SUPPORT

Incl 8 - 11

1шт.

8

10839710

DOWEL,M10 x 15.00mm

2шт.

9

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

3шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

11

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

47123788

SPRING,15mm OD x 87.5mm L

1шт.

14

47127951

CAP COVER

1шт.

15

13420576

SNAP RING,M16, Int

1шт.

16

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

17

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

18

11057776

SNAP RING,M19, Int

1шт.

19

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

20

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

21

5193100

PLUG,Hex, M14 x 1.5

1шт.

Выбрано товаров: 21
