(31.104.AR[06]) - ELECTROHYDRAULIC CONTROL VALVE FOR 40E AND 50KM/H TRANSMISSION LESS CREEPER - BREAKDOWN

Запчасти Case IH MAXXUM 110 (31.104.AR[06]) - ELECTROHYDRAULIC CONTROL VALVE FOR 40E AND 50KM/H TRANSMISSION LESS CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

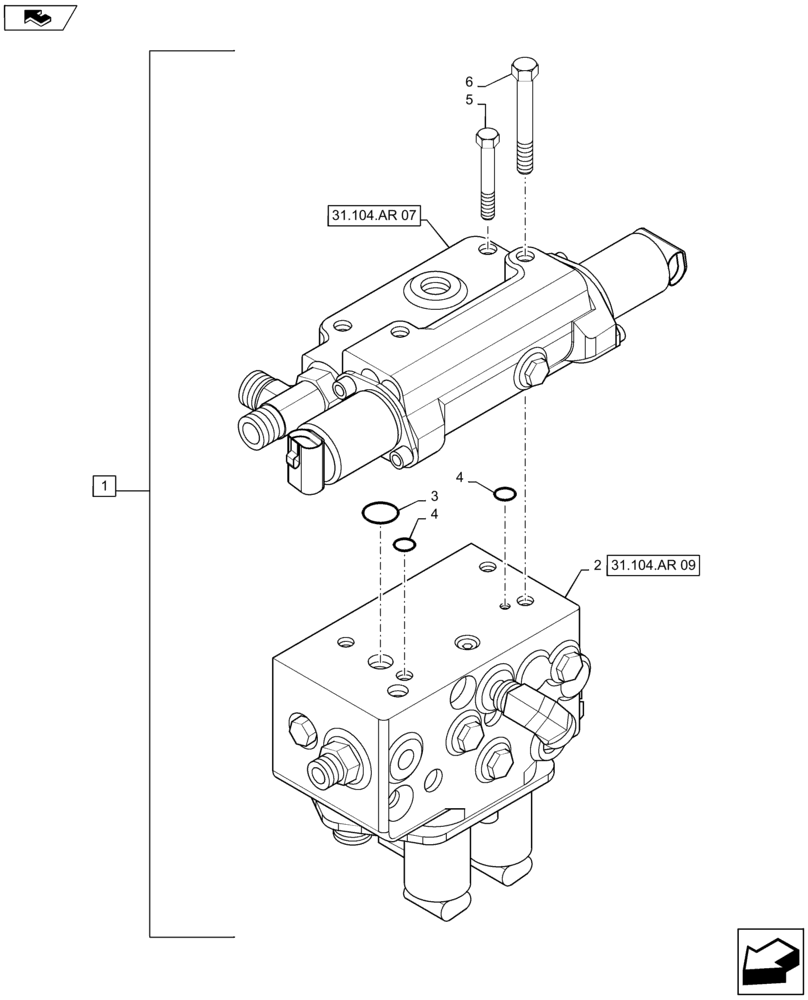

Схема запчастей Case IH MAXXUM 110 - (31.104.AR[06]) - ELECTROHYDRAULIC CONTROL VALVE FOR 40E AND 50KM/H TRANSMISSION LESS CREEPER - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF
4
5
31.104.ar 07
1
6
4
home
2
31.104.ar 09
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Order Components, See Below

1шт.

2

5197153

CONTROL VALVE

1шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

5

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

6

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.
