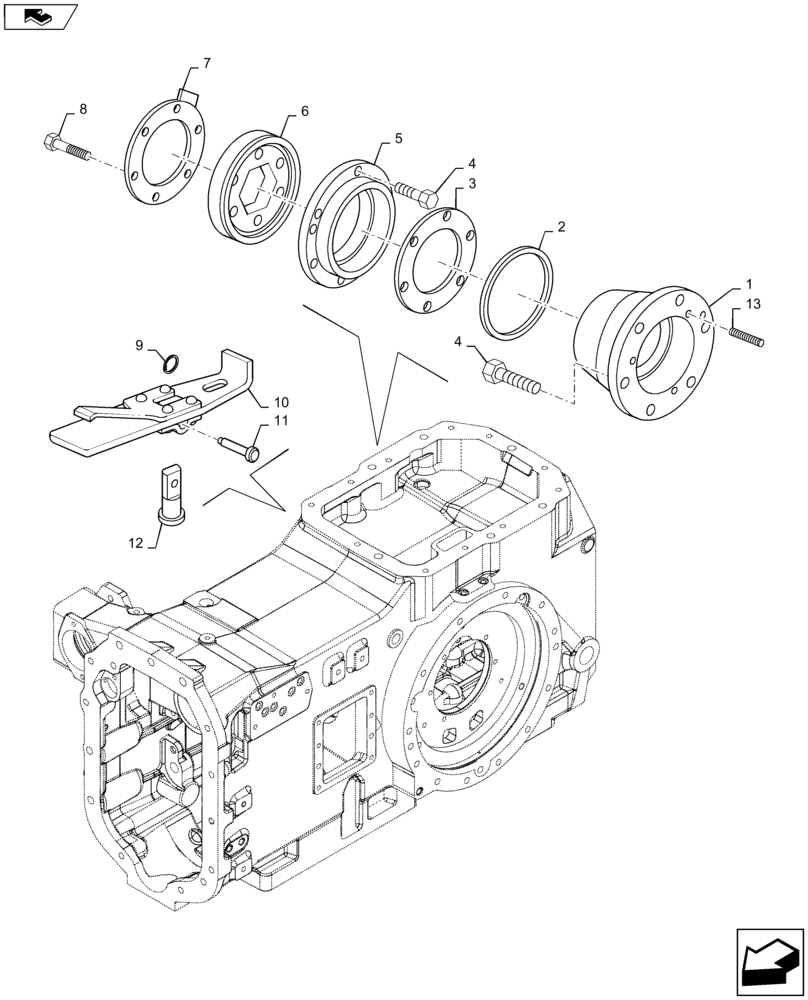

Запчасти Case IH MAXXUM 110 (27.106.AM[01]) - DIFFERENTIAL GEARS WITH HYDRAULIC LOCK - DIFFERENTIAL SUPPORT (27) - REAR AXLE SYSTEM

1

47125533

SUPPORT

LH

1шт.

2

14461981

O-RING,5.487" ID x 0.103" Width

1шт.

3

5191878

SHIM,0.150mm Thk

1шт.

3

5191880

SHIM,0.200mm Thk

1шт.

3

5191881

SHIM,0.500mm Thk

1шт.

4

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

9шт.

4

14233824

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

3шт.

5

5198628

SUPPORT

RH

1шт.

6

5198598

RING NUT,Lock, M125 x 2

1шт.

7

5198626

RING

1шт.

8

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

11063974

CLIP

1шт.

10

47125818

LEVER

1шт.

11

5199118

PIN

1шт.

12

47127063

PIN

1шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

1шт.
