Запчасти Case IH MAXXUM 110 (25.122.AL) - VAR - 330414, 330427, 330429, 330430 - CL.3 + CL.4 - SUSPENDED FRONT AXLE CONTROL VALVE AND ACCUMULATOR (25) - FRONT AXLE SYSTEM

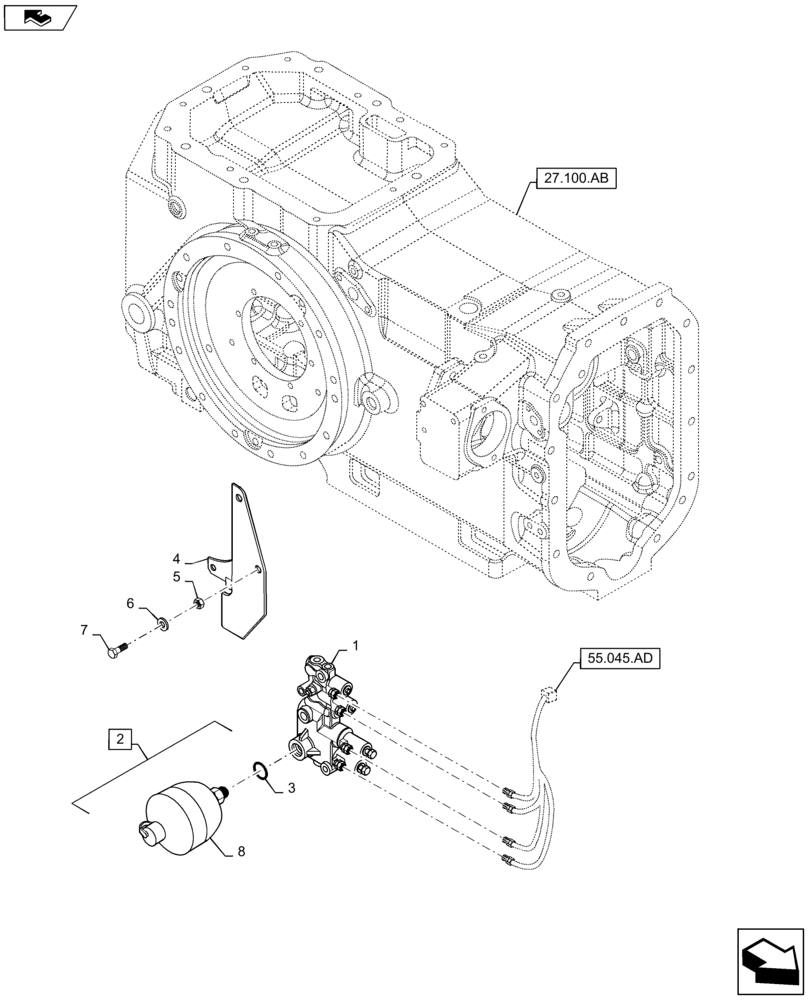

Схема запчастей Case IH MAXXUM 110 - (25.122.AL) - VAR - 330414, 330427, 330429, 330430 - CL.3 + CL.4 - SUSPENDED FRONT AXLE CONTROL VALVE AND ACCUMULATOR (25) - FRONT AXLE SYSTEM
2
8
6
55.045.ad
1
home
27.100.ab
7
3
5
4

Артикул

Название

Примечание

Количество

1

87636984

VALVE SECTION

1шт.

2

82025705

ACCUMULATOR

Incl 3, 8

1шт.

3

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

4

87636978

SUPPORT

1шт.

5

16101521

NUT,M12 x 1.25, Cl 10

2шт.

6

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

7

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

Accumulator, Incl in 2

1шт.

Выбрано товаров: 8
