Запчасти Case IH MAXXUM 110 (25.108.AG[04]) - VAR - 330427 - CL.3 SUSPENDED FRONT AXLE W/ BRAKES - STEERING KNUCKLE - SENSOR - HUB (25) - FRONT AXLE SYSTEM

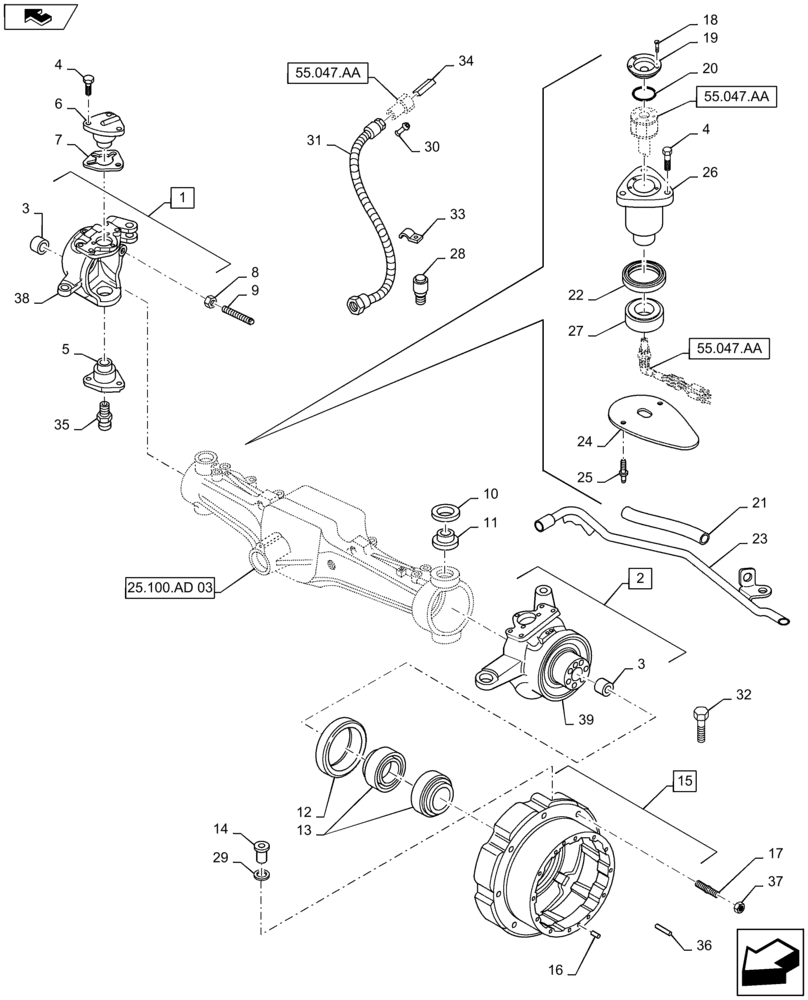

Схема запчастей Case IH MAXXUM 110 - (25.108.AG[04]) - VAR - 330427 - CL.3 SUSPENDED FRONT AXLE W/ BRAKES - STEERING KNUCKLE - SENSOR - HUB (25) - FRONT AXLE SYSTEM
21
3
1
36
25
10
7
3
22
37
39
2
17
18
29
27
26
6
15
14
55.047.aa
33
25.100.ad 03
4
13
24
4
34
23
28
9
35
11
38
16
32
8
55.047.aa
home
31
30
19
55.047.aa
12
20
5

Артикул

Название

Примечание

Количество

1

84197134

KNUCKLE

RH, Incl 3

1шт.

2

84197105

KNUCKLE

LH, Incl 3

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

87333763

BALL STUD

2шт.

6

87361688

BALL STUD

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

14

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

15

87529978

HUB

Incl 16

2шт.

16

4985063

DOWEL,12mm OD x 20mm L

2шт.

17

87618916

STUD

16шт.

18

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

19

84384510

TOP

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

87619627

HOSE PROTECTION

Cut to Required Length, 100mm

1шт.

22

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

23

87717287

HYD TUBE,12mm OD

1шт.

24

87315098

SHIELD

1шт.

25

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

26

87382577

BALL STUD

1шт.

27

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

28

13413290

BREATHER

2шт.

29

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.

30

82918419

PLUG

1шт.

31

87619680

FLEXIBLE SHEATH

1шт.

32

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

33

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

34

82918451

SPACER

1шт.

35

13407211

LUBE NIPPLE,M10 x 1

3шт.

36

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

37

87678013

NUT,M16 x 1.5

16шт.

38

NSS

NOT SOLD SEPARAT

Knuckle, Incl in1

1шт.

39

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 2

1шт.

Выбрано товаров: 43
