Запчасти Case IH MAXXUM 110 (25.108.AB[04]) - VAR - 330427 - CL.3 FRONT AXLE W/ BRAKES - GEARS AND DIFFERENTIAL AXLE (25) - FRONT AXLE SYSTEM

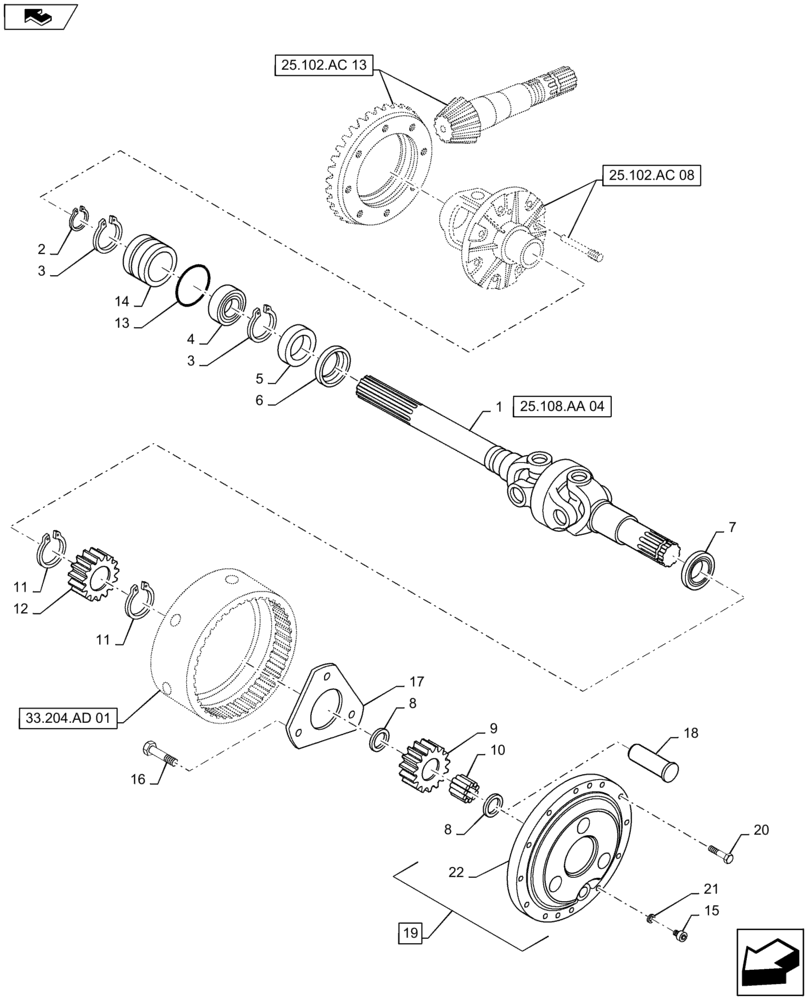

Схема запчастей Case IH MAXXUM 110 - (25.108.AB[04]) - VAR - 330427 - CL.3 FRONT AXLE W/ BRAKES - GEARS AND DIFFERENTIAL AXLE (25) - FRONT AXLE SYSTEM
16
20
11
25.108.aa 04
5
25.102.ac 13
3
home
14
19
12
10
13
8
18
3
33.204.ad 01
17
7
4
8
9
2
22
6
1
15
11
21
25.102.ac 08

Артикул

Название

Примечание

Количество

1

84194850

SHAFT

RH

1шт.

1

84194852

SHAFT

LH

1шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

11061376

SNAP RING,M68, Int

2шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

14

84197406

BUSHING

2шт.

15

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

16

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

Incl 18, 22

2шт.

18

87304540

PIN,30.3mm OD x 68mm L

6шт.

19

87310820

CARRIER,Planetary

2шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

22

NSS

NOT SOLD SEPARAT

Carrier, Incl in 19

1шт.

Выбрано товаров: 23
