Запчасти Case IH MAXXUM 110 (25.100.AV[06]) - VAR - 330409, 330416, 330425 - CL.3 FRONT AXLE - TRUNNIONS (25) - FRONT AXLE SYSTEM

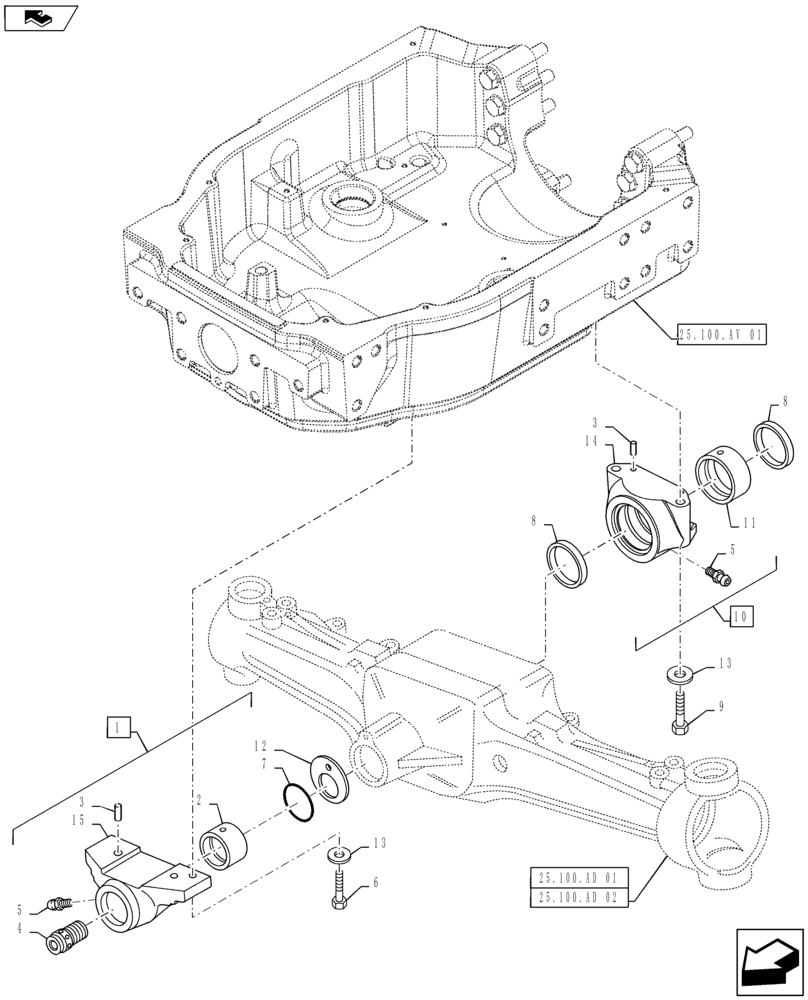

Схема запчастей Case IH MAXXUM 110 - (25.100.AV[06]) - VAR - 330409, 330416, 330425 - CL.3 FRONT AXLE - TRUNNIONS (25) - FRONT AXLE SYSTEM
15
7
11
2
13
home
25.100.ad 02
13
14
6
12
5
9
8
25.100.ad 01
10
1
8
3
3
25.100.ad 01
25.100.av 01
4
5
25.100.ad 02

Артикул

Название

Примечание

Количество

1

87311589

TRUNNION

Incl 2 - 5, 15

1шт.

2

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

7

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

8

5140455

SEALING RING

2шт.

9

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

10

87515300

TRUNNION

Incl 3, 5, 11, 14

1шт.

11

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

12

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

13

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

Выбрано товаров: 15
